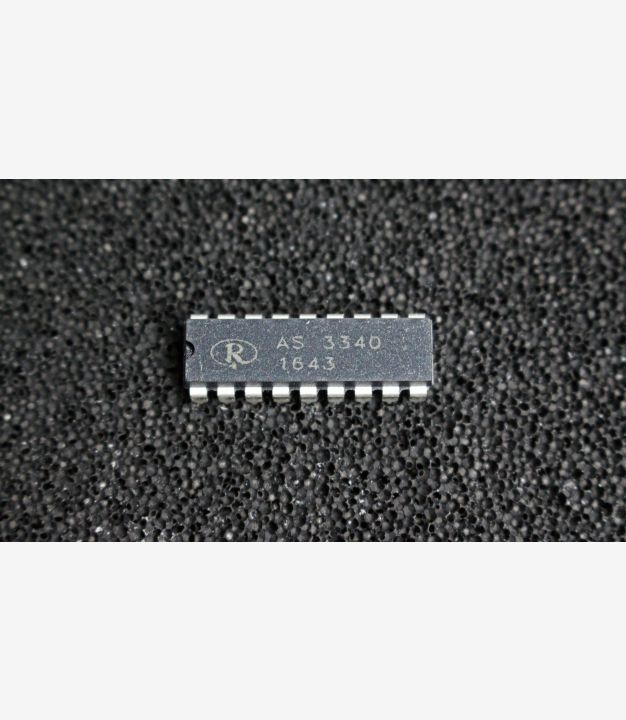

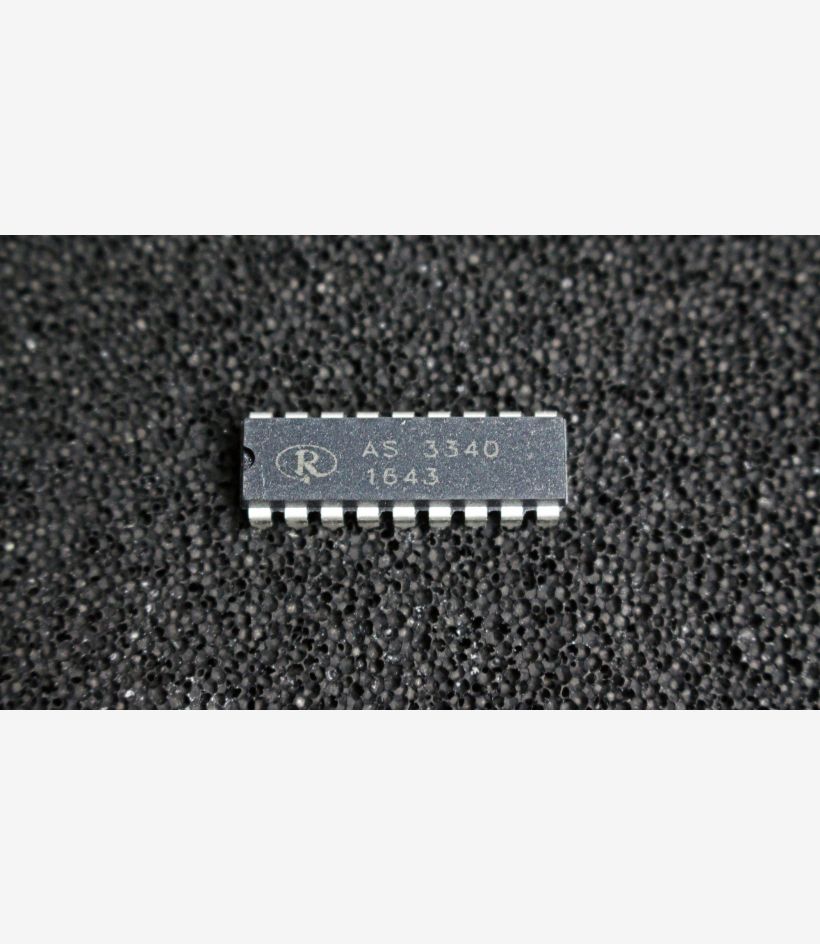

Voltage controlled oscillator AS 3340

Sku:
#VOL-81
Manufacturer:
Erica Synths
€6

VAT is not included

Worldwide delivery with UPS and Fedex
Pay securely with Credit Card or PayPal
24 month warranty
Short Description
The AS 3340 is a completely self contained, precision voltage controlled oscillator, featuring both exponential and linear control scales and up to four buffered output waveforms: triangle, sawtooth, square, and pulse with voltage controllable pulse width. Read More
Shipping & Taxes

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping

Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping

Returns Policy
Warranty
Got questions? Guides and answers to frequently asked questions. Go To Support

Product Description

The full temperature compensation makes these VCOs extremely stable and eliminates the need for a temperature compensation resistor. The AS3340 is pin to pin compatable with CEM3340, but the chip is fully redesigned in order to improve stability and eliminate some native faults and it also comes in DIP-14, SOIC-14 and QFN-24 cases for very compact designs.

NB! For 100+ pcs and/or in SOIC, QFN cases, please send an inquiry to Alfa RPAR: [email protected]


Datasheet is downloadable below.


Product Highlights

Product Features

  • Large Sweep Range: 50,000:1 min
  • Fully Temperature Compensated
  • Four Output Waveforms Available; No waveform trimming required
  • Summing Node Inputs for Frequency Control
  • High Exponential Scale Accuracy
  • Low Temperature Drift
  • Voltage Controlled Pulse Width
  • Hard and Soft Sync Inputs
  • Linear FM
  • Buffered, Short Circuit Protected Outputs
  • ±15 Volt Supplies
  • CEM 3340 / CEM3345 replacement
