Black Double Bass
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

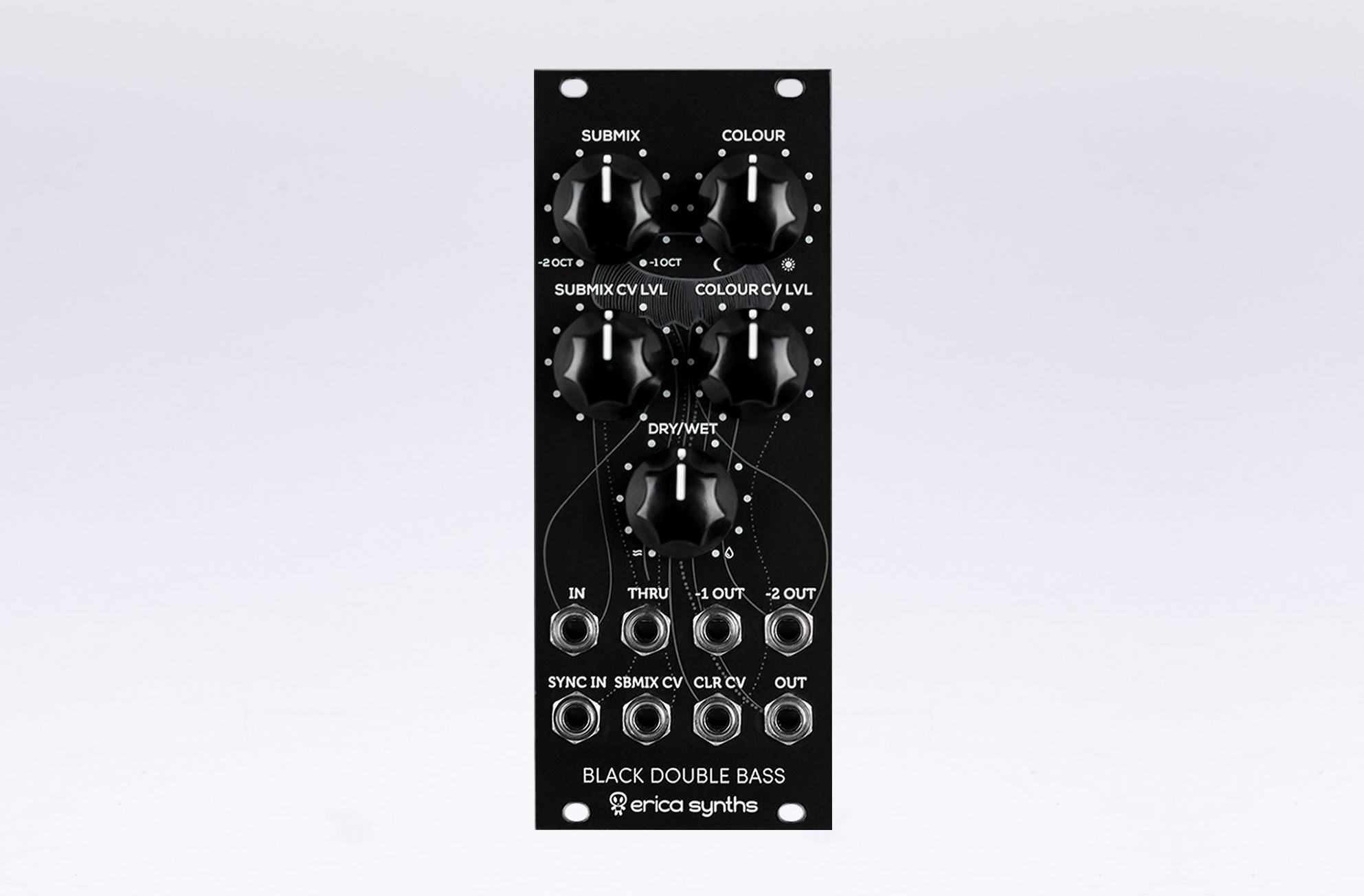

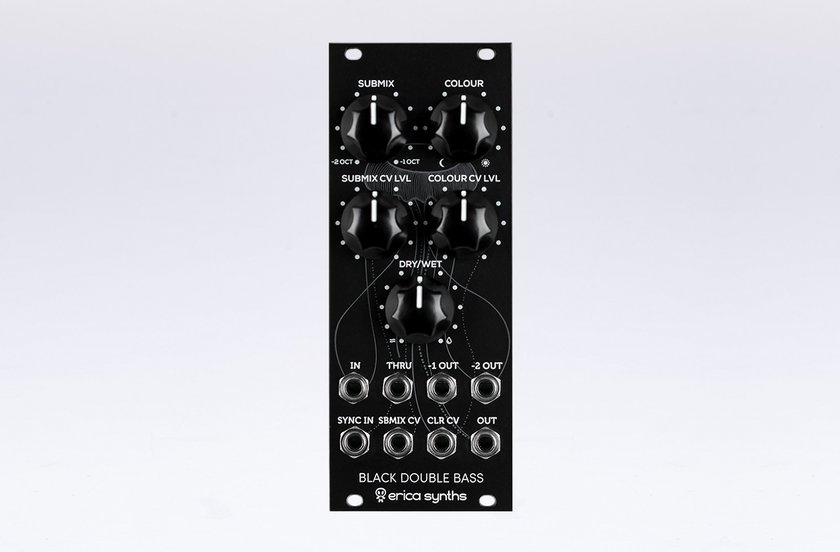

Erica Synths Black Double Bass is unique module that combines two transistor suboscillators (-1 and -2 octaves) and lowpass filter. It does not make sound on its own, but it will turn any VCO or beeper into massive bass sound with CV control over octave mix and cutoff frequency. Sync input that resets suboscillators on incoming pulse, provides even more versatility in sound design. The module can be also provide aggressive distortion, when used with percussive sounds like bassdrums.
Features
- Two transistor based -1 and -2 octaves suboscillators
- Manually and CV controlled fade between suboscillators
- Manually and CV controlled lowpass VCF
- Suboscillator synchronisation input
- Individual outputs of suboscillators
- Limiter on the output to avoid clipping
- Signal Thru output
- CV level attenuators
NB! Double Bass module is not an audio source by itself and needs an audio input!
Technical specifications:
| Audio input level | -5V - +5V |
| CV level (full sweep) | -5V - +5V |
| Power consumption | +50mA, -39mA |
| Module width | 10HP |
| Module depth | 35mm |
