Black HADSR Envelope Generator
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

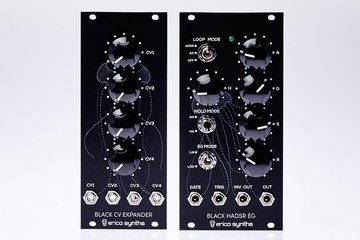

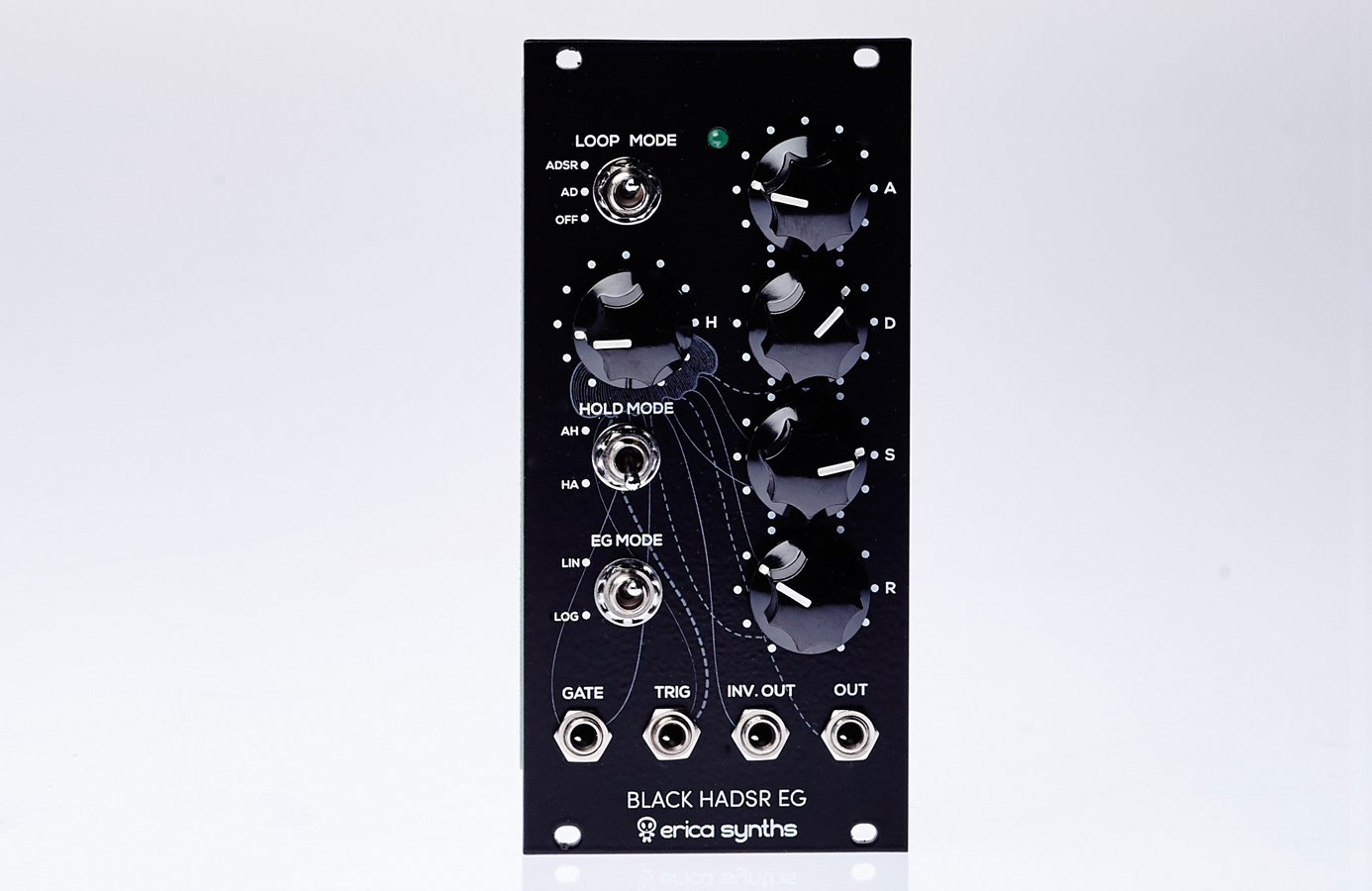

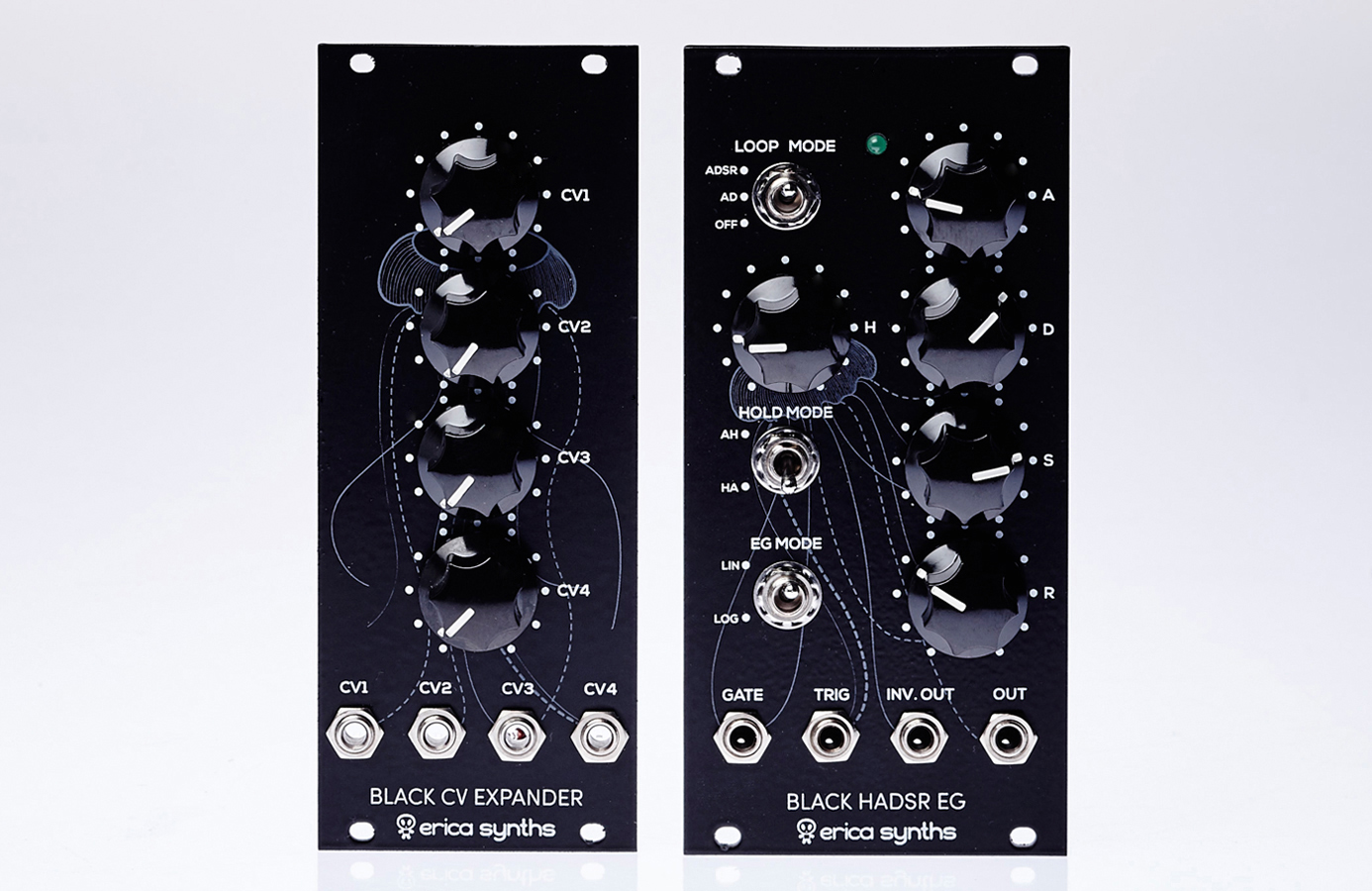

Erica Synths Black HADSR Envelope generator is a feature-rich yet easily operated five stage envelope generator. If you wish to add more versatility, you can use it with the Black CV Expander.
Features
- Full ADSR envelope looping
- AR envelope looping
- HADSR & AHDSR modes
- Retrigger envelope at any stage with trigger input
- Adjust each parameter with CV (if used with EG CV Expander)
- Inverted output
- Adjustable hold time before or after attack
- Diode protection on reversed power supply
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
Sustain level | 0 – +10V |
Hold time | 0 – 2’’ |
Attack time | 0 – 2’’ |
Decay time | 0 – 0,5’’ |
Release time | 0 – 5’’ |
Power consumption | +25mA, -15mA |
Module width | 12HP |
Module depth | 25mm |
Erica Black HADSR EG on Modulargrid
Demo by Ben_Hex
AVAILABLE UNTIL STOCK LASTS!
Manuals book
-
User manual — May 8, 2018
-
User manual (Japanese) — May 8, 2018
