Black Joystick Controller

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

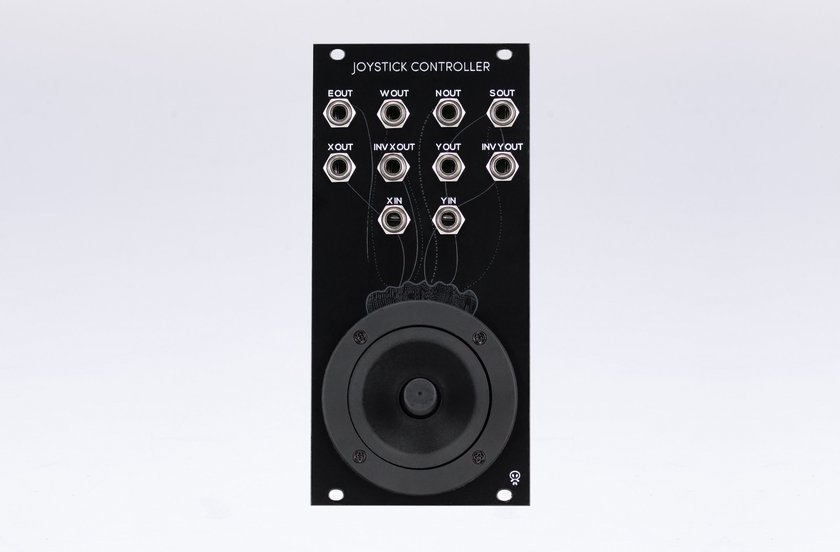

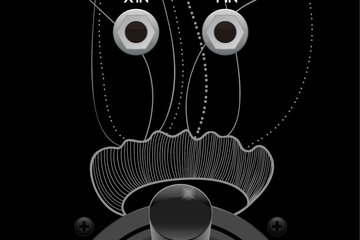

Erica Synths Black Joystick Controller is a manual command center for your modular setup, it also generates several sets of CVs and alters incoming CV signal. The joystick doesn't have a spring.

Features

  • Four unipolar 0-10V CV outputs
  • Two bipolar -5V - +5V CV outputs
  • Two inverted -5V - +5V CV outputs
  • Two CV inputs
  • “Dead zone” in the joystick centre
  • setting for 0V CV output
  • Skiff friendly design

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

E, W, N, S CV level

0…10V

X-Y CV level

-5V…+5V

CV IN level

-10V - +10V

Panel width

12HP

Module depth

30mm

Power consumption

25mA@+12V,

25mA@-12V
