DISCONTINUED PRODUCTS

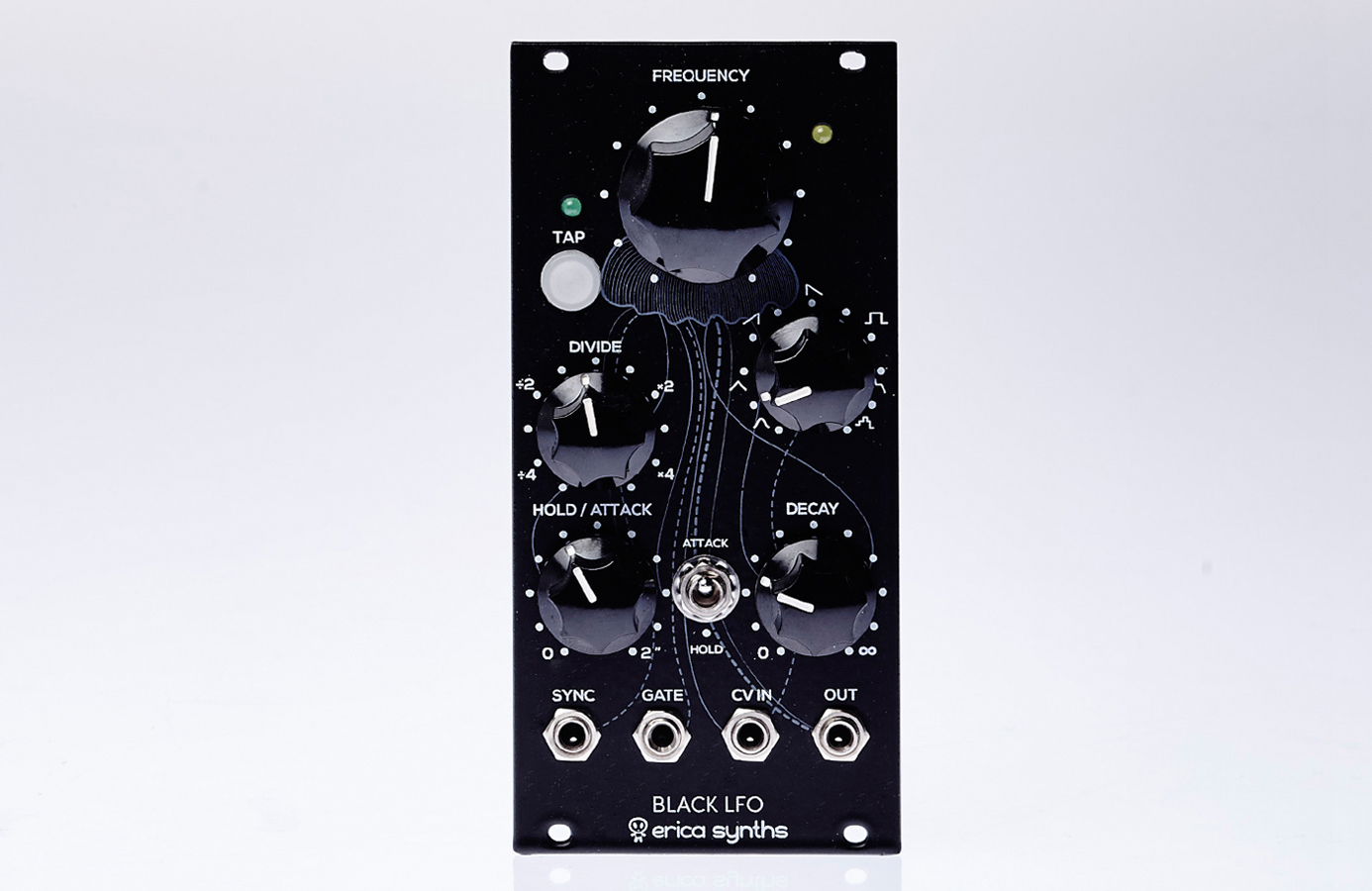

Black LFO
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Features
- 6 waveforms + S&H
- TAP tempo
- External sync for LFO frequency
- Divide and multiply LFO frequency (can multiply/divide ext. sync too!)
- LED for LFO output state
- Built in VCA that controls LFO signal amplitude
- Built in VCA auto loops if no gate signal is applied
- Key follow function - LFO will start when gate signal is sent to GATE
- Inputs/outputs are protected against over-voltage
- Diode protection on reversed power supply

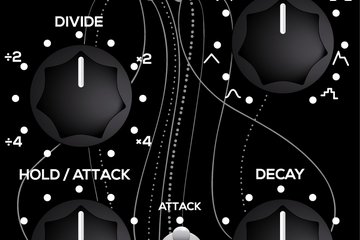

This broad function LFO module has 6 waveforms and S&H, frequency divider/multiplier, tap-tempo and a built in VCA circuit.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
CV Input signal
level |
-10V - +10V |
Output signal level |
-5V – +5V |
Frequency range |
0,1Hz – 60Hz |
Hold/Attack time |
0 – 2’’ |
Decay time |
0 - 5’’ |
Power consumption |
+25mA, -13mA |
Module width |
12HP |
Module depth |
25mm |
Erica Black series LFO on Modualrgrid
Manuals book
-
User manual (Japanese) — May 8, 2018
-
User manual — May 8, 2018
