DISCONTINUED PRODUCTS

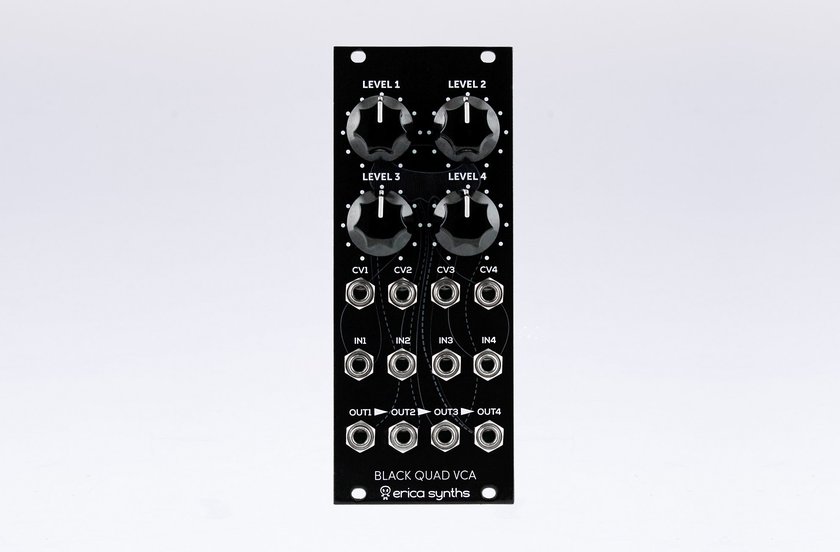

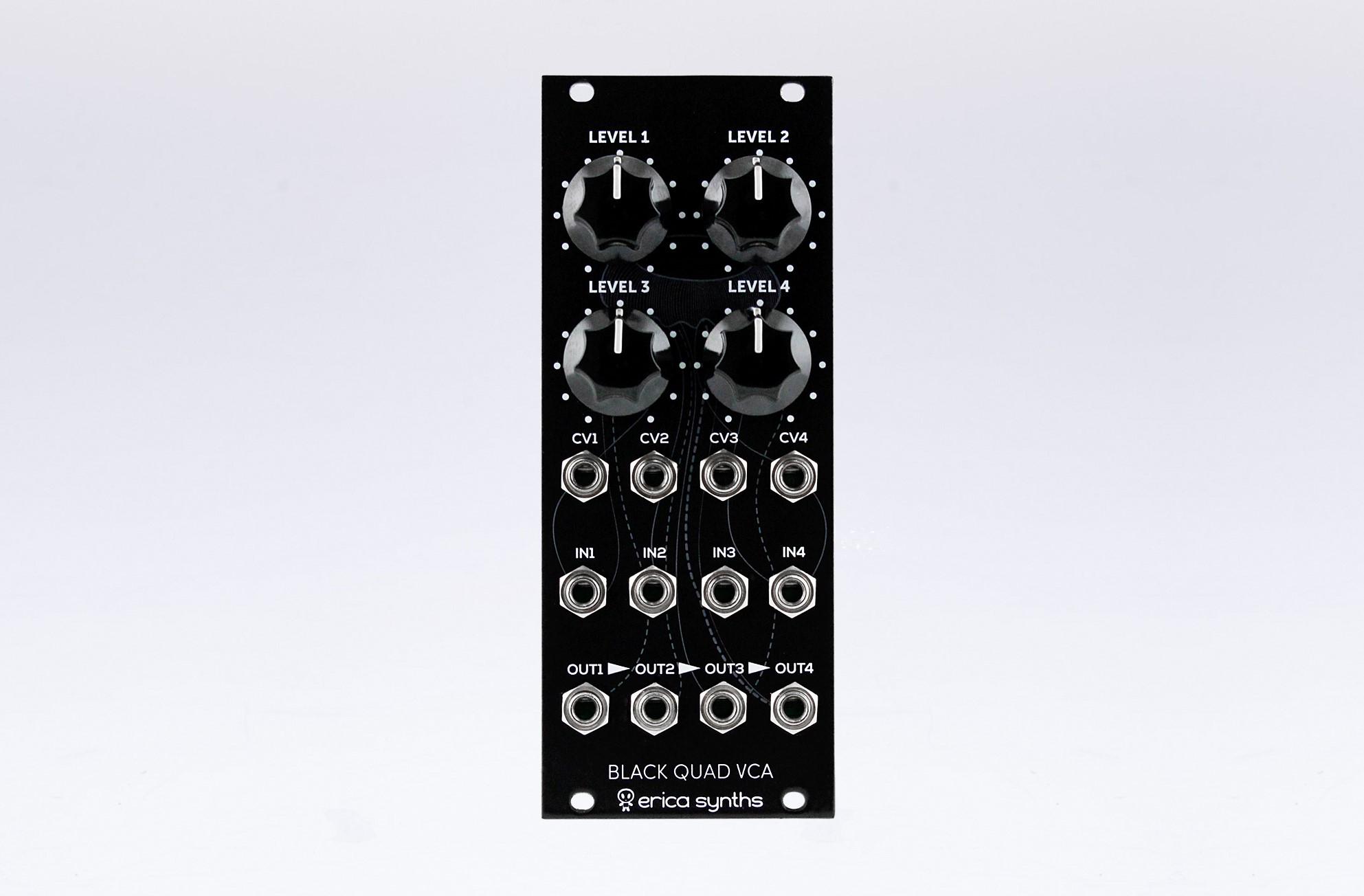

Black Quad VCA

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
Erica Synths Black Quad VCA, despite its compact size, is designed in line with the Black Series Hi-Fi philosophy, our custom pre-emphasis – de-emphasis circuits preserve all the nuances of the original signal.

Features

  • 4 independent VCAs
  • Manual signal and CV level adjustment
  • Pre-emphasis – de-emphasis circuits on all 4 channels
  • Automatic output mixing
  • Configurable CV addressing


If you wish to shape the sound in advanced ways, but you also want to save some rack space then the Black Quad VCA is what you need. We have introduced a unique automatic mixing of outputs and configurable CV addressing. If no CV is applied Black Quad VCA performs as a signal mixer as well. Use it with Erica Black Dual EG/LFO and you have a compact, top quality setup!

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

CV level

-10V – +10V

Attenuation level:

      CV = 0V (max attenuation)

      CV = +10V (unity gain)



-80dB

0dB

Response

log

Power consumption

+62mA, -60mA

Module width

10HP

Module depth

25mm
