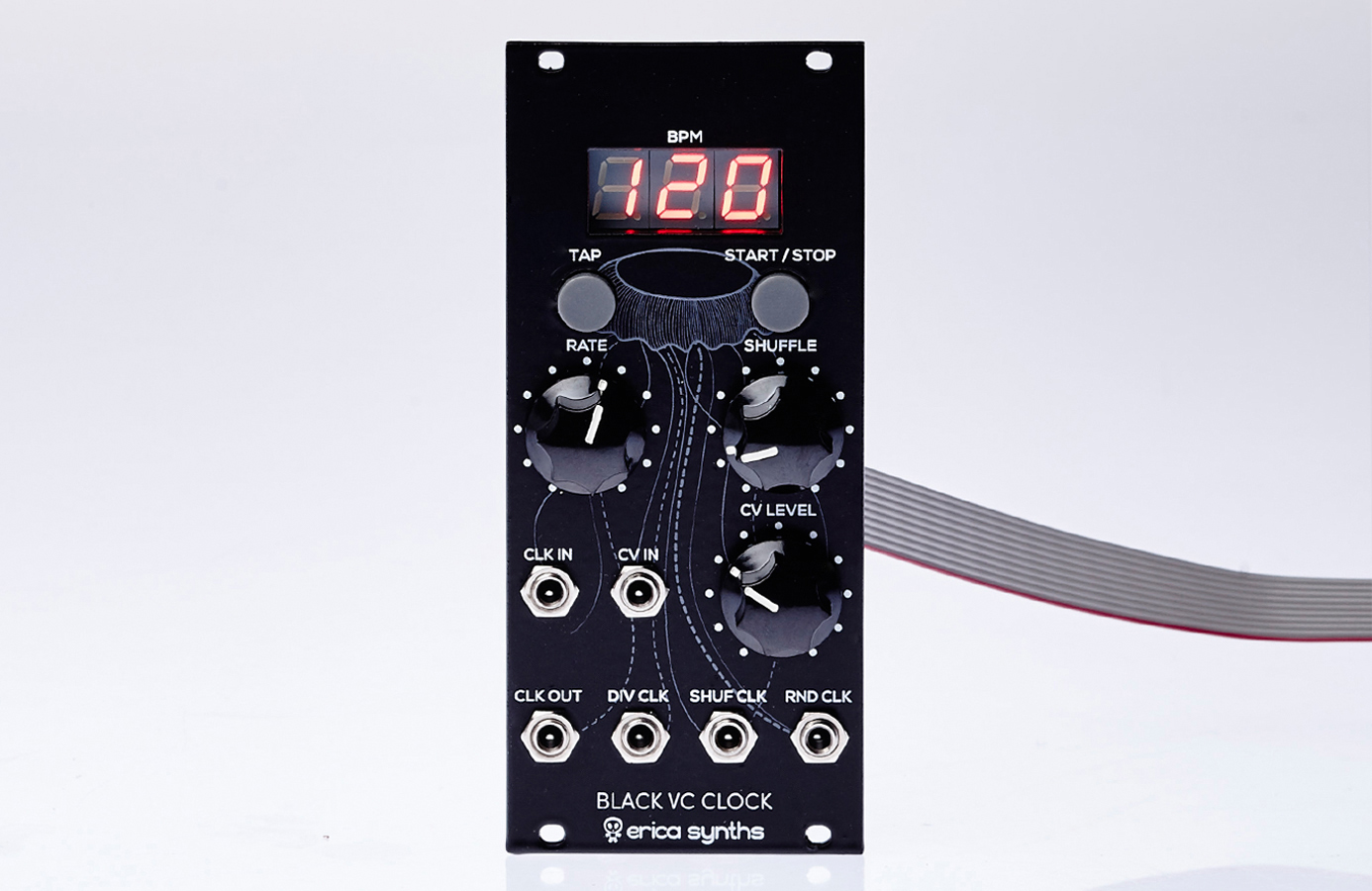

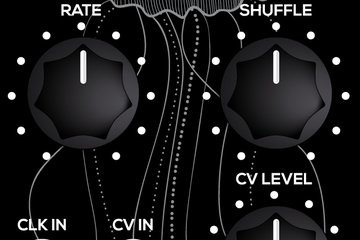

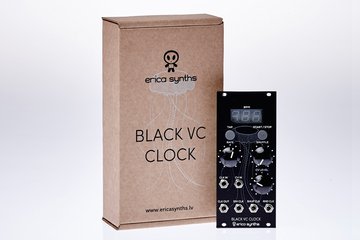

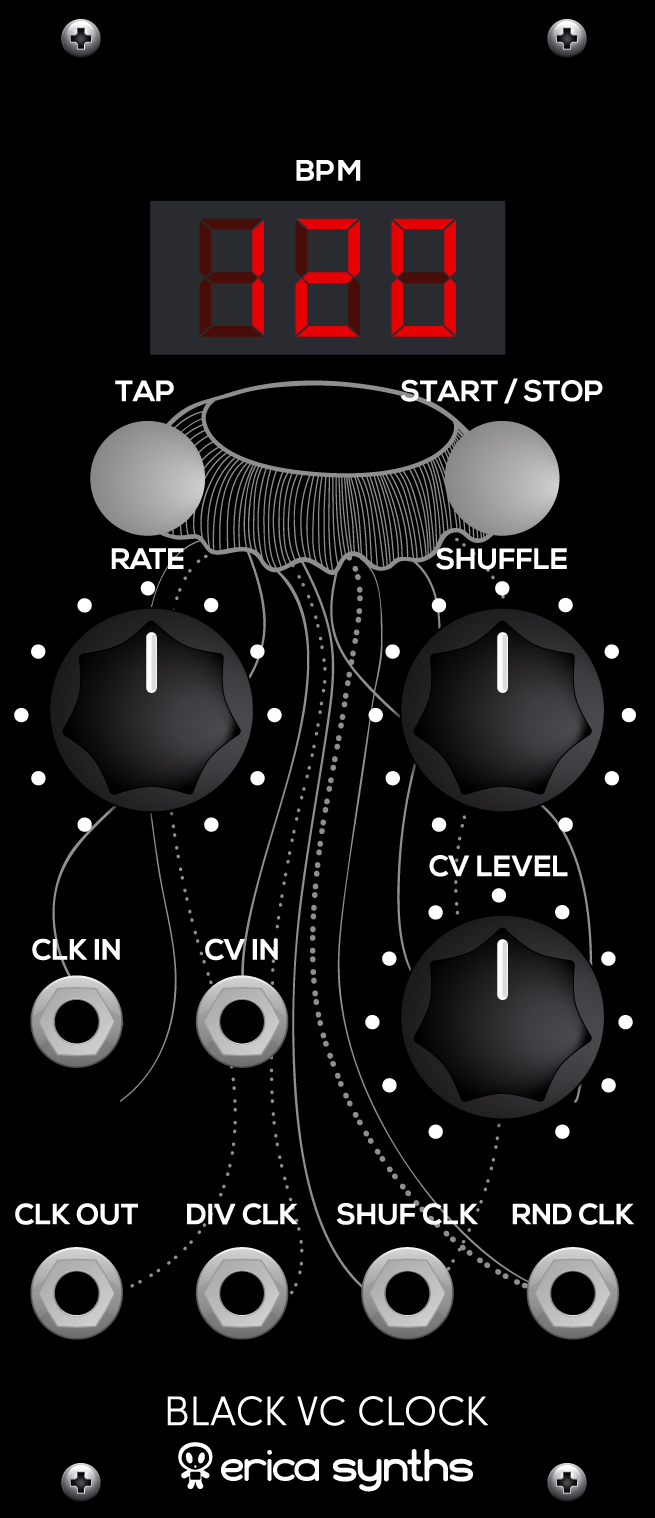

Black Voltage Controlled Clock V1
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Features
- Clock output with BPM input via encoder or tap-tempo button
- Divided clock output (/16, /8, /4, /3, /2, x2, x4, x8, x16)
- Shuffling Clock output with adjustable shuffle level and clock multiplication (x2, x4, x8, x16)
- Random Clock output with adjustable output rate
- Voltage controlled clock rate
- BPM indicator
- External Clock input with BPM indication
- Inputs/outputs are protected against over-voltage
- Diode protection on reversed power supply
The beating heart of your modular system. The module generates several clock signals simultaneously and it has advanced features (tap tempo, shuffle, divide) both for controlled, rhythmic music production and for experiments with high level of uncertainty.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
CV Input signal level | -10V – +10V |
Clock signal level | 0 – +5V |
Clock rate | 30 – 420BPM |
Power consumption | +40mA, -5mA |
Module width | 12HP |
Module depth | 25mm |
