DIY Bassline
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

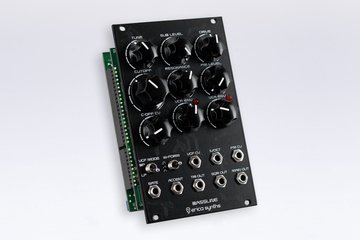

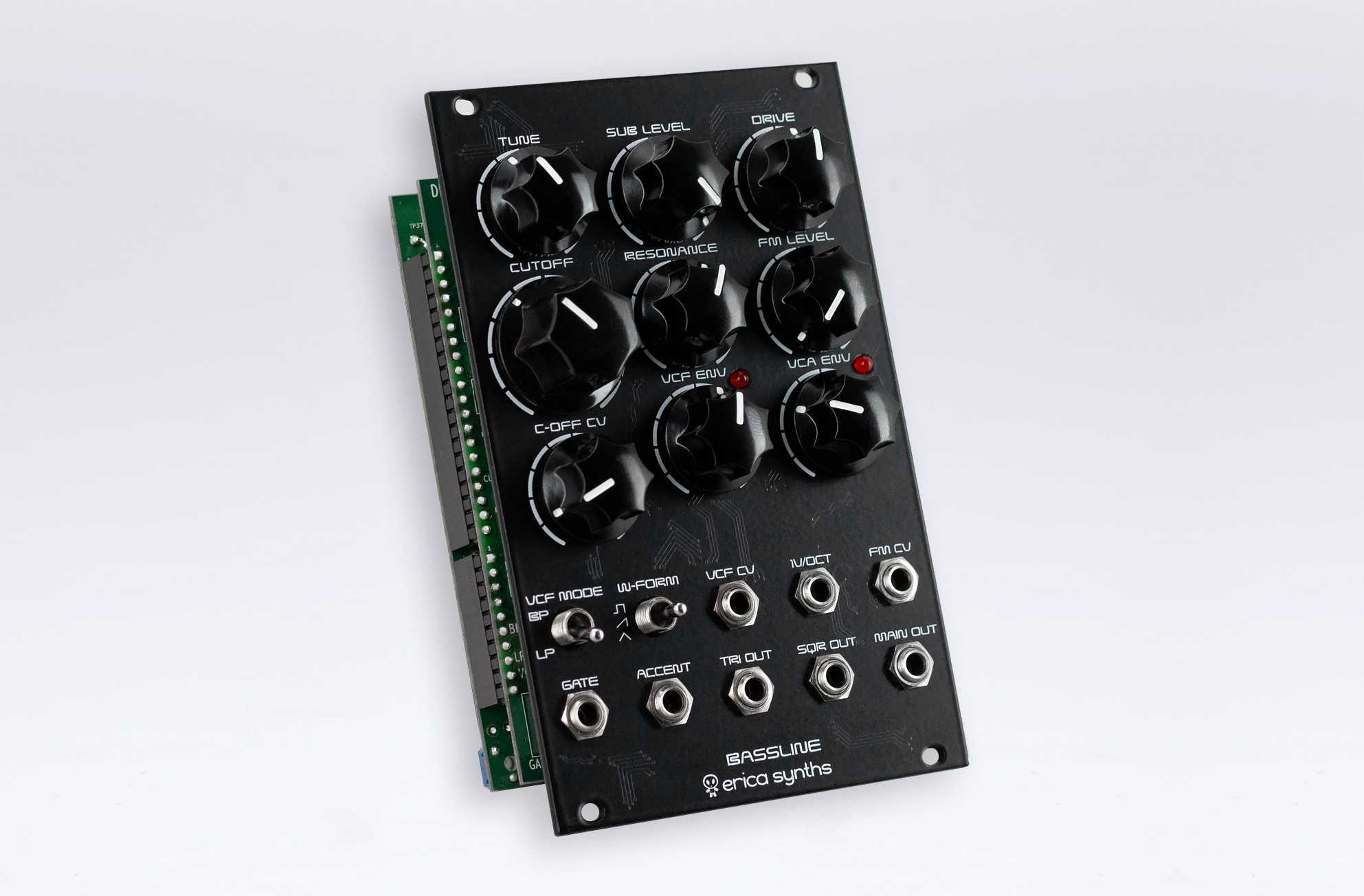

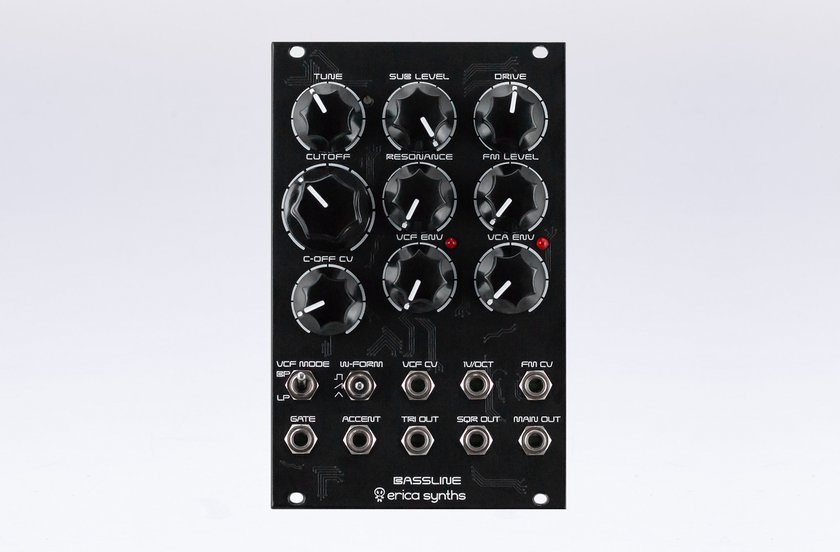

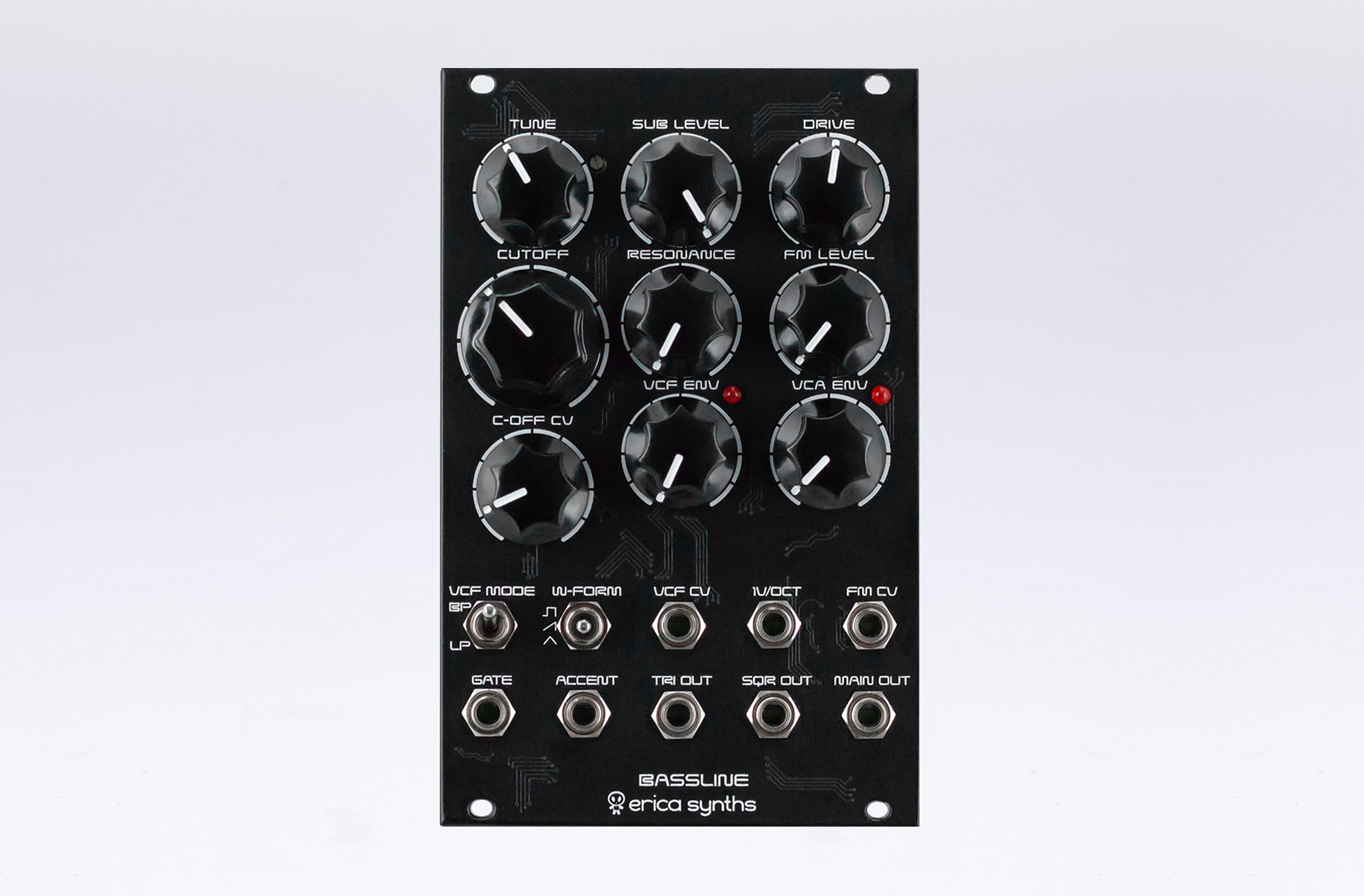

Erica Synths DIY Bassline is a fully analogue synth voice module for ultimate acid basslines. It features highly stable AS3340-based VCO with three wave-forms, a filter inspired by Erica Synths Acidbox and a unique feature - transistor based suboscillator. Accent provides more expression to the bassline by adding volume and slightly opening the VCF.
Features
- Full analogue circuit
- Great 1V/oct tracking
- Simultaneous Triangle, Square and Master outputs
- Accent
- Transistor-based suboscillator
- VCF and VCA decay envelopes
- LP/BP VCF
- External VCO FM and VCF cutoff CV inputs
This is a comparably complex DIY project for experienced builders. We do not recommend this for beginners and ones without proper soldering and testing equipment.
Technical specifications:
Pitch range | C0-C8 |
Audio output amplitude | 10Vptp |
CV amplitude | -5V -+ 5V |
Panel width | 16HP |
Module depth | 45mm |
Power consumption | 80mA @+12V 40mA @-12V |
Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
Manuals book
-
Assembly Guide — July 24, 2018
Downloads cloud_download
-
BOM — July 23, 2018
-
Assembly documents — July 23, 2018
