DIY Module bundle II

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

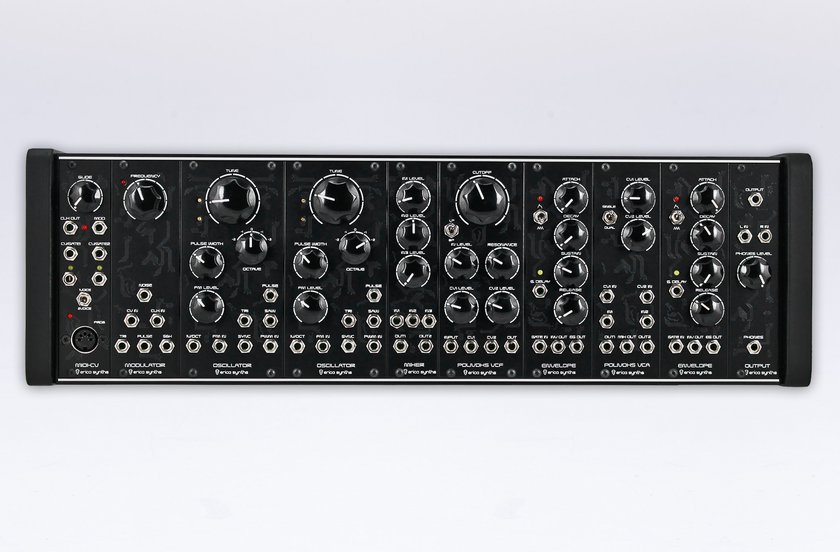

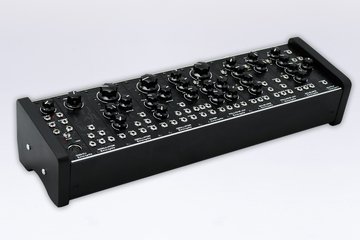

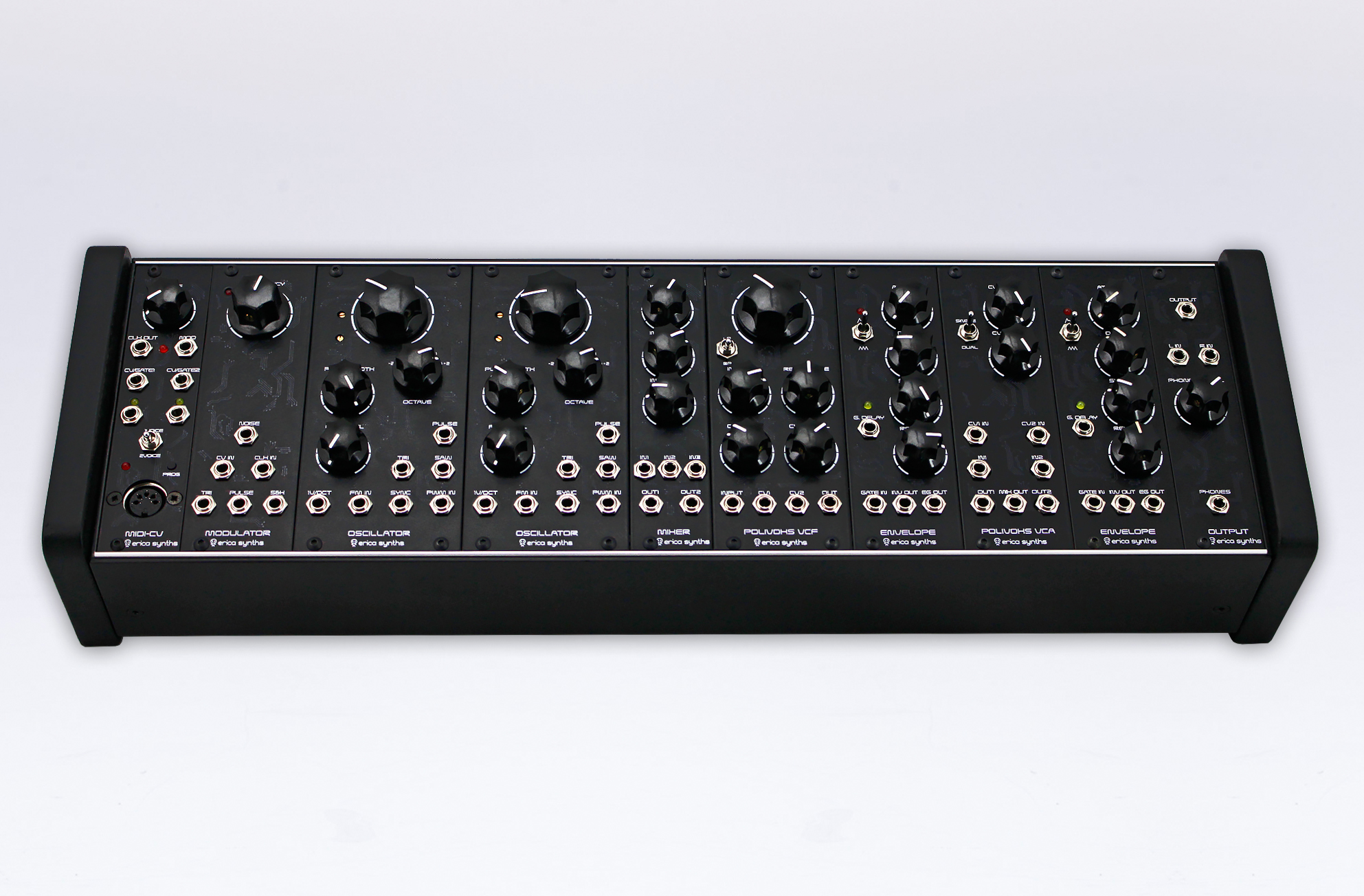

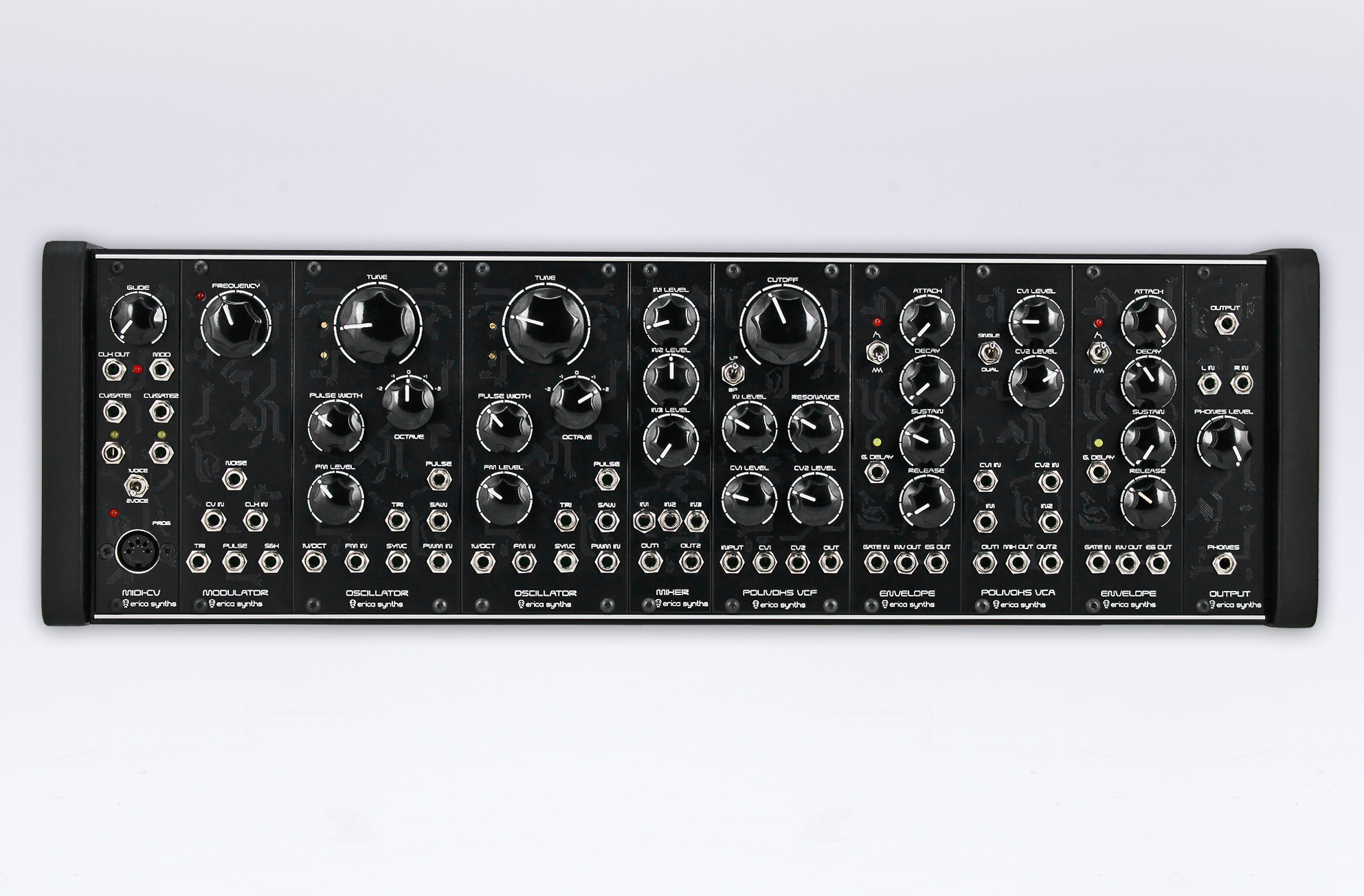

An 84HP two-VCO modular system with 53 patch points that go well beyond classic monosynths. This is not just a Polivoks clone.

Features



DIY module system includes:

  • DIY MIDI-CV emulates classical monophonic and duophonic synth behaviour.

  • DIY Modulator essentially is LFO with simultaneous triangle and square wave outputs, clockable S&H with external CV input and noise source.

  • DIY Polivoks-inspired VCO with simultaneous triangle, ramp and pulse wave outputs, sync and PWM CV inputs. In VCO’s exponential converter we use the original matched transistor IC that was used in Polivoks.

  • DIY Mixer is a simple, straight-forward audio mixer that is an essential part of any modular setup.

  • DIY Polivoks VCF is famous for its’ crazy resonance sweeps and deep, bassy sound, that makes it ideal for acid basslines. A kit comes with two K140UD12 opamps that were used in the original Polivoks.

  • DIY Polivoks-inspired looping ADSR Envelope Generator with gate delay, direct and inverted envelope outputs.

  • DIY Polivoks-inspired VCA - two differential opamp-based VCAs in series each for LFO and ADSR control over signal amplitude independently; it can be used as dual VCA as well. Kit comes with two K118UD1 differential opamp ICs.

  • DIY Output module allows you to interface modular system with external gear via 3,5mm stereo jack and monitor compositions on headphones.


*Module bundle 84HP = MIDI-CV, Modulator, 2xVCO, Mixer, VCF, 2xEG, VCA, Output

**Module bundle 72HP = Modulator, 2xVCO, Mixer, VCF, 2xEG, VCA, Output



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
