OUTLET

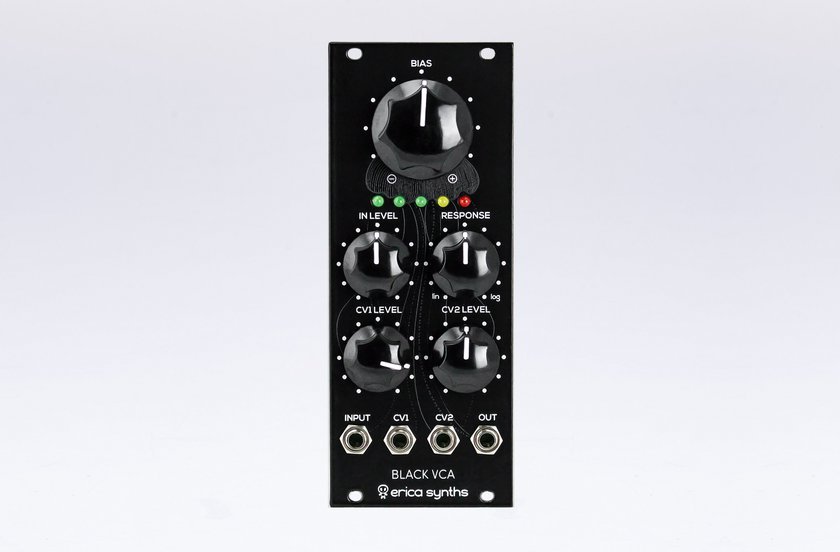

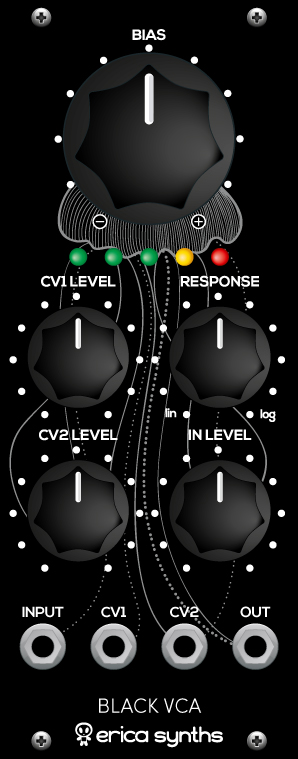

Black VCA V2
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Features
- Manual bias control
- Manual fading between linear and logarithmic response
- Two CV inputs
- Output level indicator bargraph
Smooth fading between linear and logarithmic response allows you to create versatile percussion sounds. LED bargraph gives visual feedback on the output level.
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
CV level | -10V – +10V |
Attenuation level: | |
CV = 0V (max attenuation) | -80dB |
CV = +10V (unity gain) | 0dB |
Power consumption | +45mA, -32mA |
Module width | 10HP |
Module depth | 25mm |
Erica Black VCA v2 on Modulargrid
Manuals book
-
User manual — May 8, 2018
