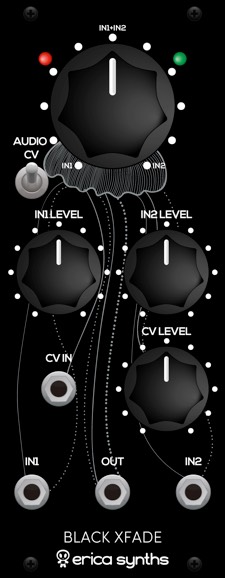

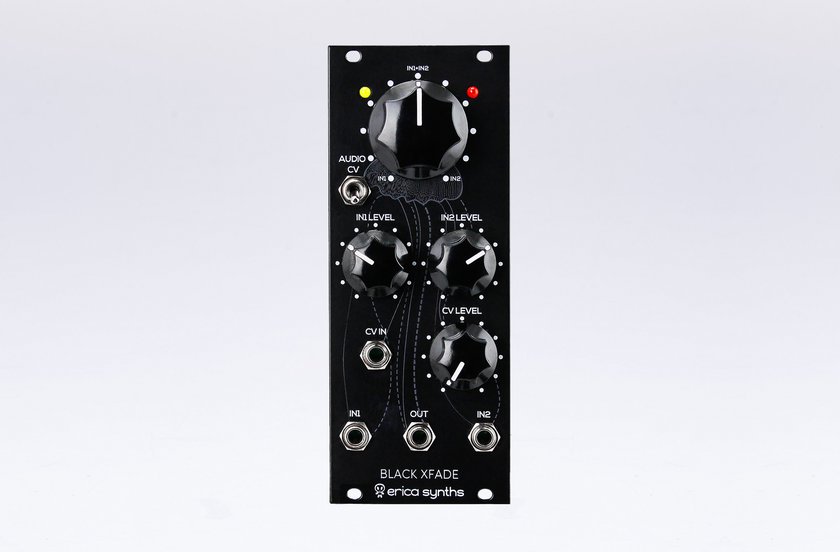

Erica Synths Black XFADE is a high-end module for smooth manual or CV controlled crossfading between two audio or CV signals, it is essential for modular performances.

Features

  • 2 inputs with amplifiers and attenuators
  • Manually and CV controlled crossfade
  • Audio/CV mode switch
  • Crossfade status indication LEDs

The fade curve is calculated in a way that you do not loose signal amplitude in any stage of crossfade, LEDs give visual feedback on currently active input. When used with CVs, the module helps to come up with really advanced modulations. In addition Black XFADE can be used to boost CV and audio signals.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

Input signal amplitude

up to 20Vptp

Xfade CV amplitude (full sweep)

-5V-+5V

Input gain

2

Power consumption

+35mA, -34mA

Module width

10HP

Module depth

25mm


Erica Black XFade module on Modulargrid
