DIY kits

EDU DIY Labor

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

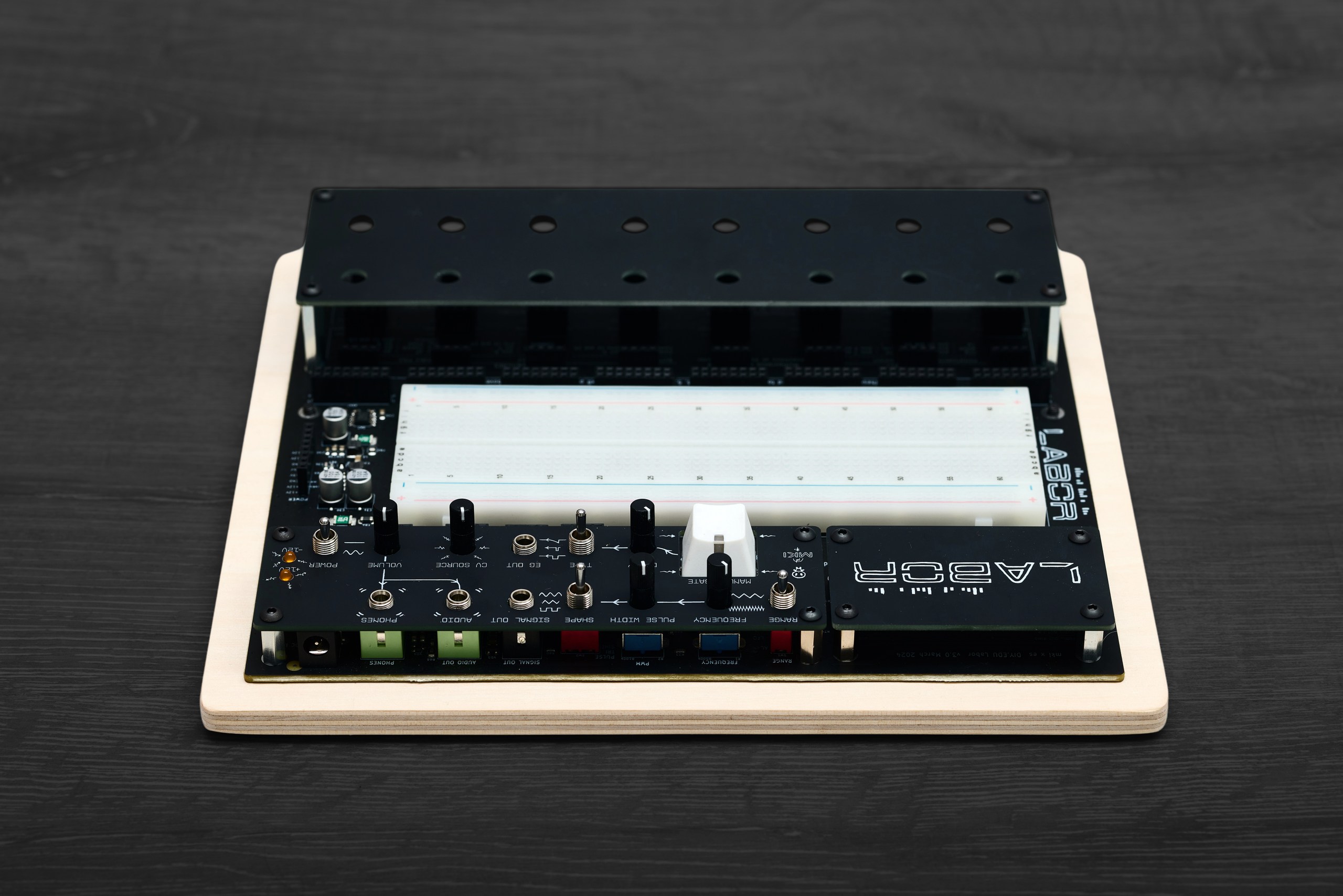

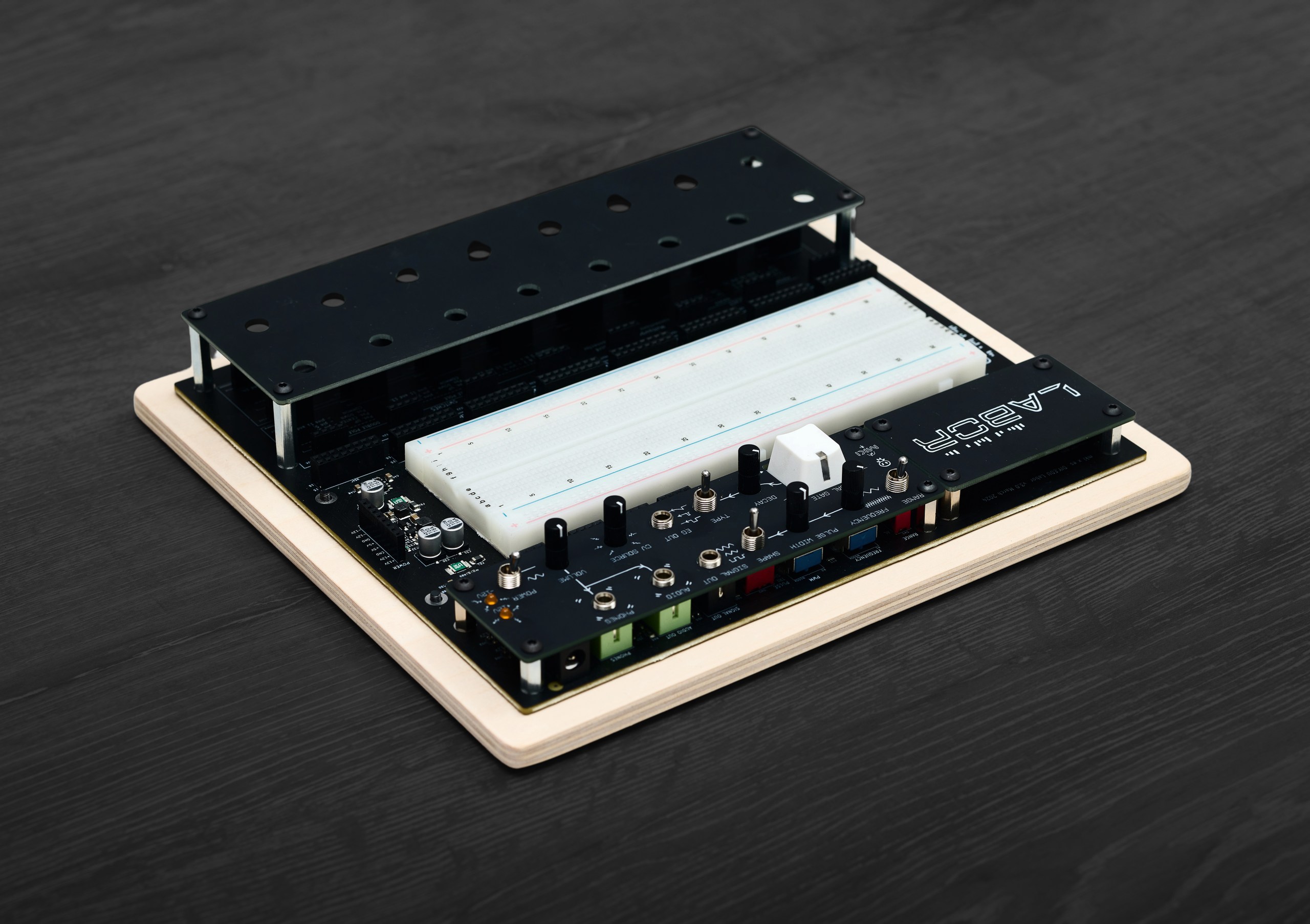

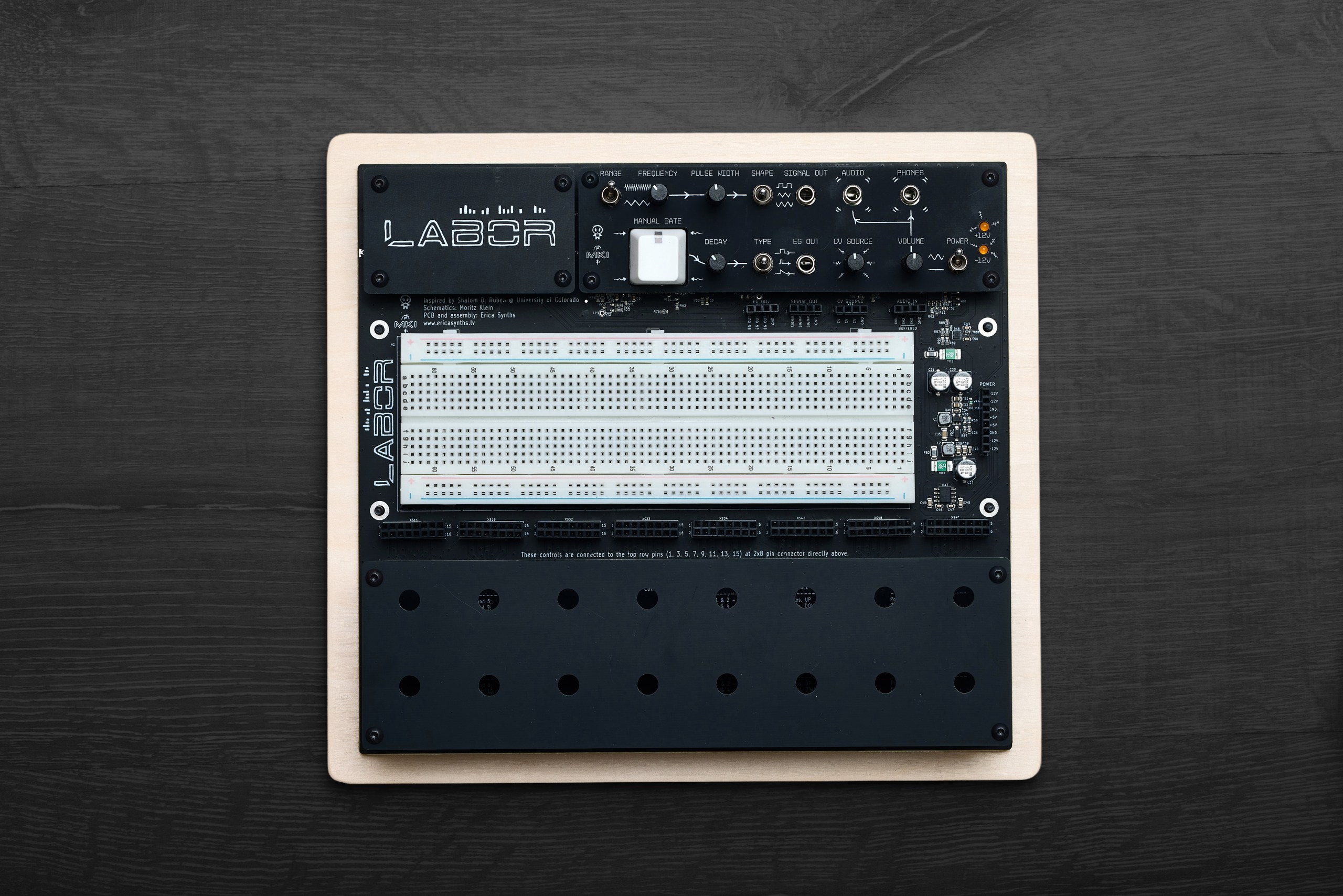

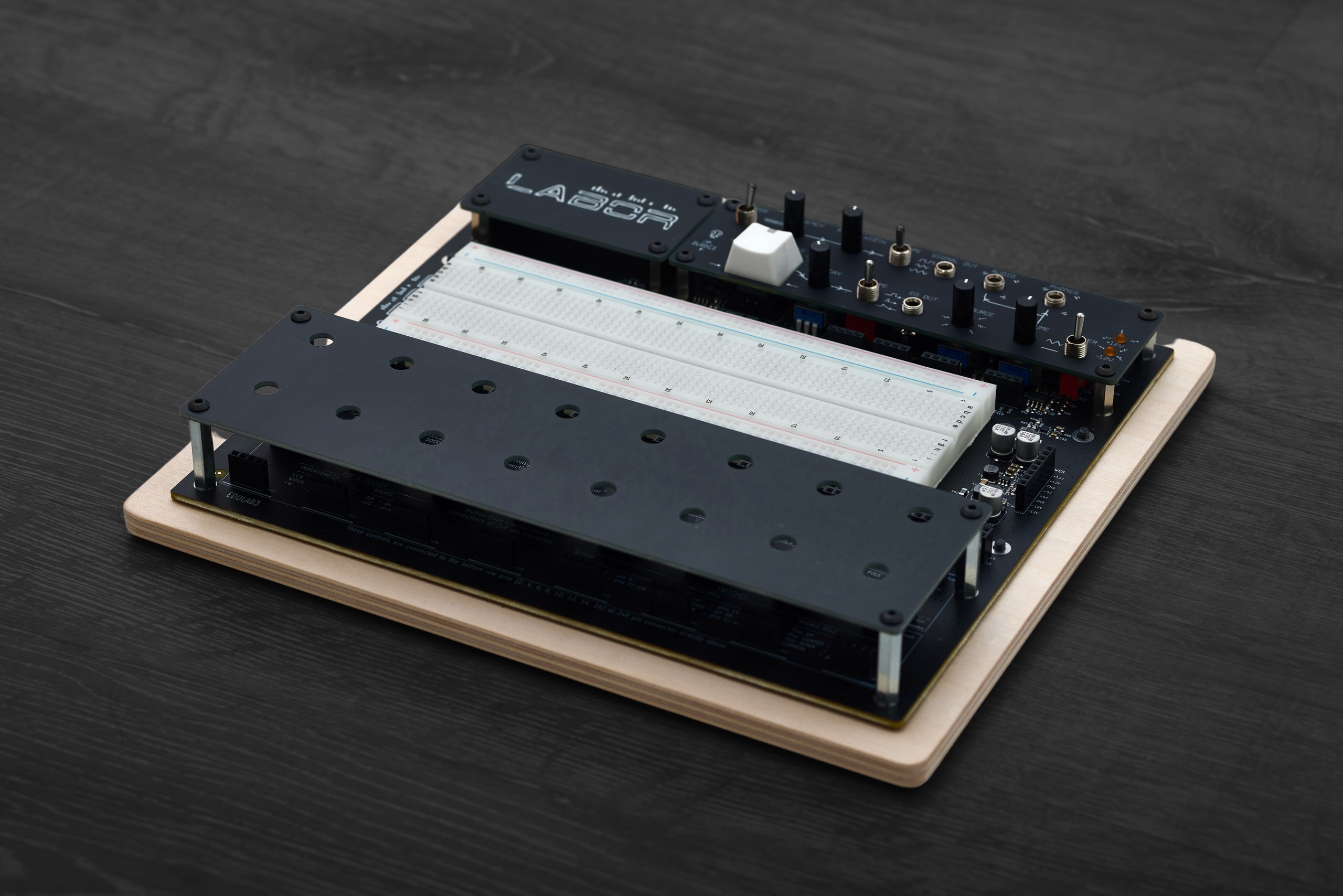

Get started in circuit design with MKI x ES Labor. Developed in collaboration with Dr. Shalom D. Ruben, teaching professor of engineering at the University of Colorado, Labor is a fully-featured circuit design playground and a powerful electronics learning tool – all in one. Created as a universal platform for electronics education, Labor enables users to explore a wide range of topics, from fundamental concepts to advanced design techniques. Whether you're a beginner learning the basics or an experienced engineer refining your skills, Labor offers a versatile platform for experimentation and discovery. Build your own filters, oscillators, envelopes, sequencers – or anything else you can imagine. Or start with the fundamentals by following along with our series of educational DIY kits.

Features

  • Built-in dual power supply with Eurorack-compatible voltages and overcurrent (short-circuit) protection for safe experimentation
  • Modular interfacing section with 16 slots for potentiometers, jacks, and switches
  • Pulse/triangle/sine oscillator (audio and LFO range)
  • Multi-mode envelope generator controlled by a Cherry push button
  • Buffered variable control voltage source
  • Output amplifier with adjustable gain
  • Dedicated headphone output and line-level output for recording, processing, and analysis
  • Expansion slot for installing specialized prototyping tools (e.g. Labor Scope)
  • Protective lid to cover the breadboard and preserve your circuit

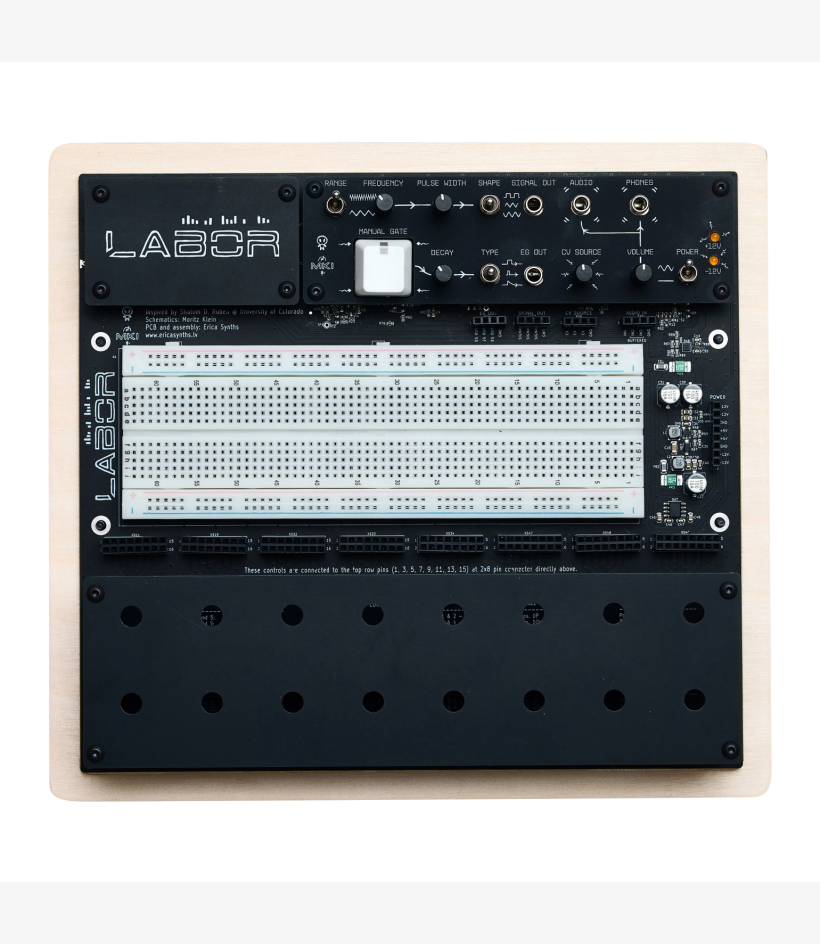

The EDU DIY Labor Basic Kit includes:

  • Labor
  • Power supply (wall wart)
  • Jumper cables
  • Selection of interfacing elements (potentiometers, jack sockets, switches)

The EDU DIY Labor Full Kit includes:

  • Everything in the Basic Kit, plus a wide assortment of essential components (resistors, capacitors, ICs, transistors) so you can start building right away

Note: Labor is a prototyping environment for experimenting with electronic circuits. As the manufacturer, we cannot provide support for user-designed circuits. We will only respond to support requests related to clear malfunctions in the factory-assembled parts of the Labor unit. For other cases of malfunction (or help with DIY circuit design), we recommend consulting experienced users on forums such as this one. Keep experimenting – keep trying!

We ship Labor as a partial DIY kit. While many parts are pre-assembled, others require manual assembly and soldering.



Be sure to download template files for Labor Switch and Potentiometer boards -
LABTEMP1.zip – an archive containing assembly and Gerber files. The assembly files include the board dimensions and the connector placement.
Important note: the connector placement is indicated as viewed from the top layer of the board, even though the connectors themselves are physically located on the bottom layer.

The Gerber files show the same information but also allow you to generate the board files if you don’t use KiCad.

LABTEMP1_KiCad.zip – an archive with KiCad project files. It includes a README.txt file with instructions to rename one of the files.

Manuals book

Downloads cloud_download

  • LABTEMP1.zip — June 5, 2025
    Template files for Labor Switch and Potentiometer boards for those, who want to make their own custom boards.
  • LABTEMP1_KiCad.zip — June 5, 2025
    Template files for Labor Switch and Potentiometer boards for those, who want to make their own custom boards.
  • Projects for Labor — March 27, 2025
    None

You may also like

mki x es.EDU DIY System
mki x es.EDU DIY System

We – Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.

from € 500.00

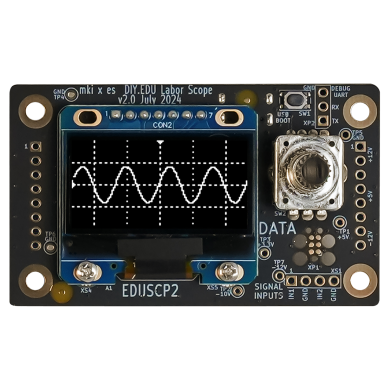

EDU DIY Labor Scope
