Graphic series
Graphic Resonant FB
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

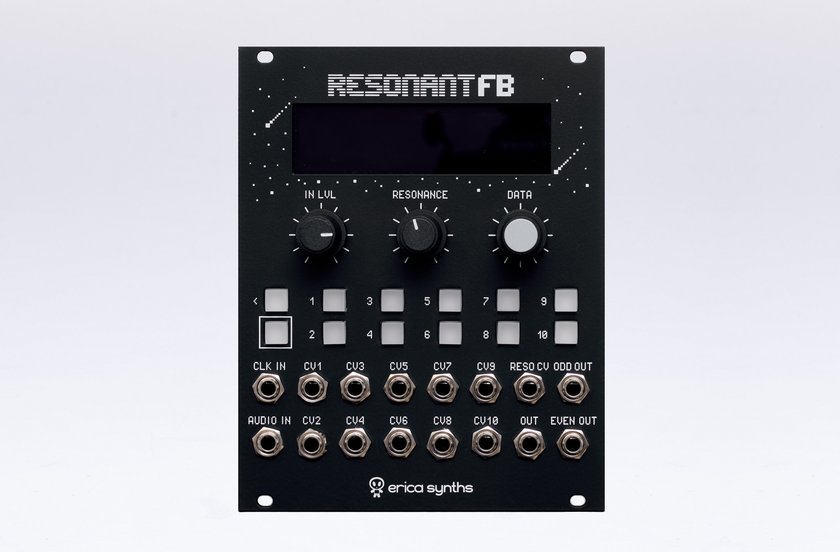

The Graphic Resonant Filterbank (FB) is a ten-band analogue filterbank with digital control over each bands’ boost or cut. Each band can be controlled individually via CV or manually, while complex control configurations turn the filterbank into an unconventional multimode filter and even an instrument in its own right when played with various resonance settings. The Expander module (works exclusively with the Graphic Resonant Filterbank and is available separately) provides hands-on adjustment of boost and cut for all bands.
Features
- Analogue 10 band filterbank
- Saveable presets for filterbank, filter modes, dynamic EQ, and resonance settings
- Main, even and odd outputs
- Manual and voltage-controlled band boost/cut
- Configurable resonance feedback loops
- Manual and voltage-controlled resonance
- Clock input for synchronization of events with a master clock source
- Multimode filter mode
- Spectral analyzer mode
- Dynamic spectral compressor mode
- Discrete and morphing pattern change
- Configurable CV inputs
- Expander module for immediate access to band levels
- Skiff-friendly design
SPECIFICATIONS:
Audio signal amplitude | 10Vptp |
Bandpass filter frequencies | 29Hz,61Hz,115Hz,218Hz,411Hz,777Hz, 1,5kHz, 2,8kHz, 5,2kHz,11kHz +-10% |
CV input amplitude (configurable) | -10V - +10V |
Number of presets | 128 |
Panel width | 20HP |
Module depth | 30mm |
Power consumption | (with EXP) 138(145)mA@+12V,50mA@-12V |
"The new Erica Synths RESONANT FB is an unavoidable sonic masterpiece. After 40+ years of dealing with electronic music synthesis, it is rare for me to get sonically surprised... THIS DID! It is delightfully addictive, surprisingly fresh, powerfully gratifying, direct, and responsive, allowing for a plethora of unique sounds, in any of its different modes. (And yes, you can save your own presets too!)
So, Try it at your own peril: You will not come back sonically the same! (I know: sounds huber cliché: BUT IT IS DARN TRUE!) I plan to bring it to our "Hans Zimmer Live" US 2024 Fall tour!" - Pedro Eustache
Graphic Resonant FB on Modulargrid
Manuals book
-
User Manual — Sept. 18, 2024English
Updates refresh
-
1.3 Firmware — Oct. 30, 20241.3 Firmware for the Graphic Resonant FB
-
1.2 Firmware — Sept. 26, 20241.2 Firmware for the Graphic Resonant FB
-
1.1 Firmware — Sept. 20, 20241.1 Firmware for the Graphic Resonant FB
