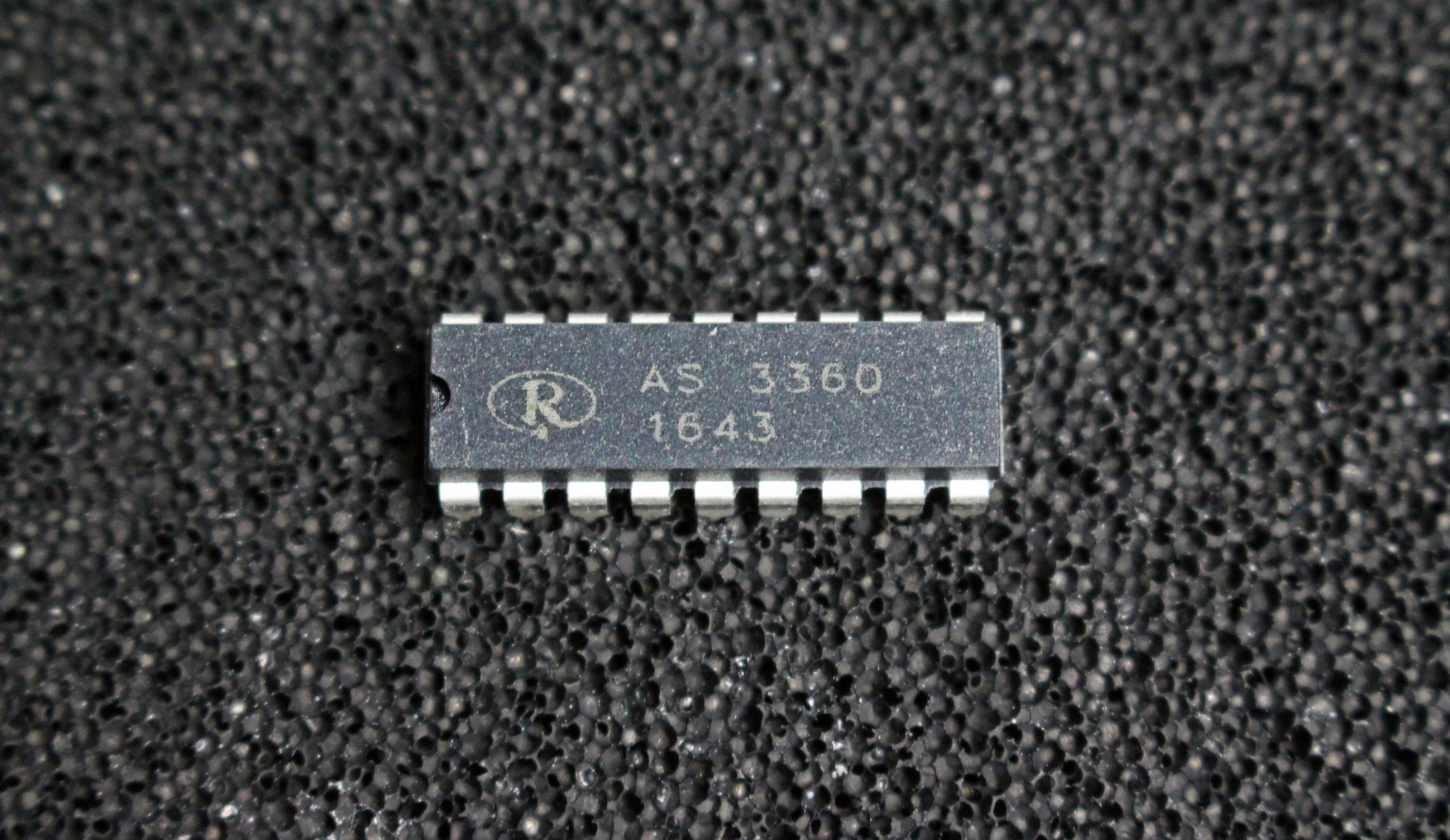

Voltage controlled amplifier AS 3360

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
The AS3360 is a dual general purpose voltage controlled transconductor intended for such applications as voltage controlled amplifiers, filters, and waveform generators.

Features

  • Two Independent VCAs in a Single 14 Pin package
  • Simple to Use - Few External Components Required
  • Exceptionally Low Control Feedthrough Without
  • Trimming: 10mV Maximum Out of 10 V.P.P. Output
  • Low Noise: -110 dB Typical
  • No Trimming Required
  • Summing Node Signal Inputs
  • Current Outputs Capable of Swinging to Within 1.5V of Each Supply
  • Linear and Exponential Control
  • Control Voltages Referenced to Ground
  • Wide Supply Range: ±3 to ±12V or +15, - 3 to -9V
  • CEM3360 replacement

Each transconductor independently provides both linear and exponential control scaling over greater than a 100 dB range. The AS3360 is pin to pin compatable with CEM3360, but the chip is fully redesigned in order to improve stability and eliminate some native faults and it comes in DIP-14 and SOIC-14 cases.

NB! For 100+ pcs and/or in SOIC, QFN cases, please send an inquiry to Alfa RPAR: alfa@alfarzpp.lv

Datasheet is downloadable below.
