Voltage Controlled Filter AS 3109
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
AS3109 is a high-performance voltage-controlled four-pole filter, pin to pin replacement of IR3109 VCF ICs found on vintage Roland synths, like Jupiter series, Juno series, SH-101, and others. The four independent sections may be interconnected to provide a wide variety of filter responses, such as low pass, high pass, bandpass, and all pass. A single input exponentially controls the frequency over greater than a 15-octave range with little control voltage feedthrough.

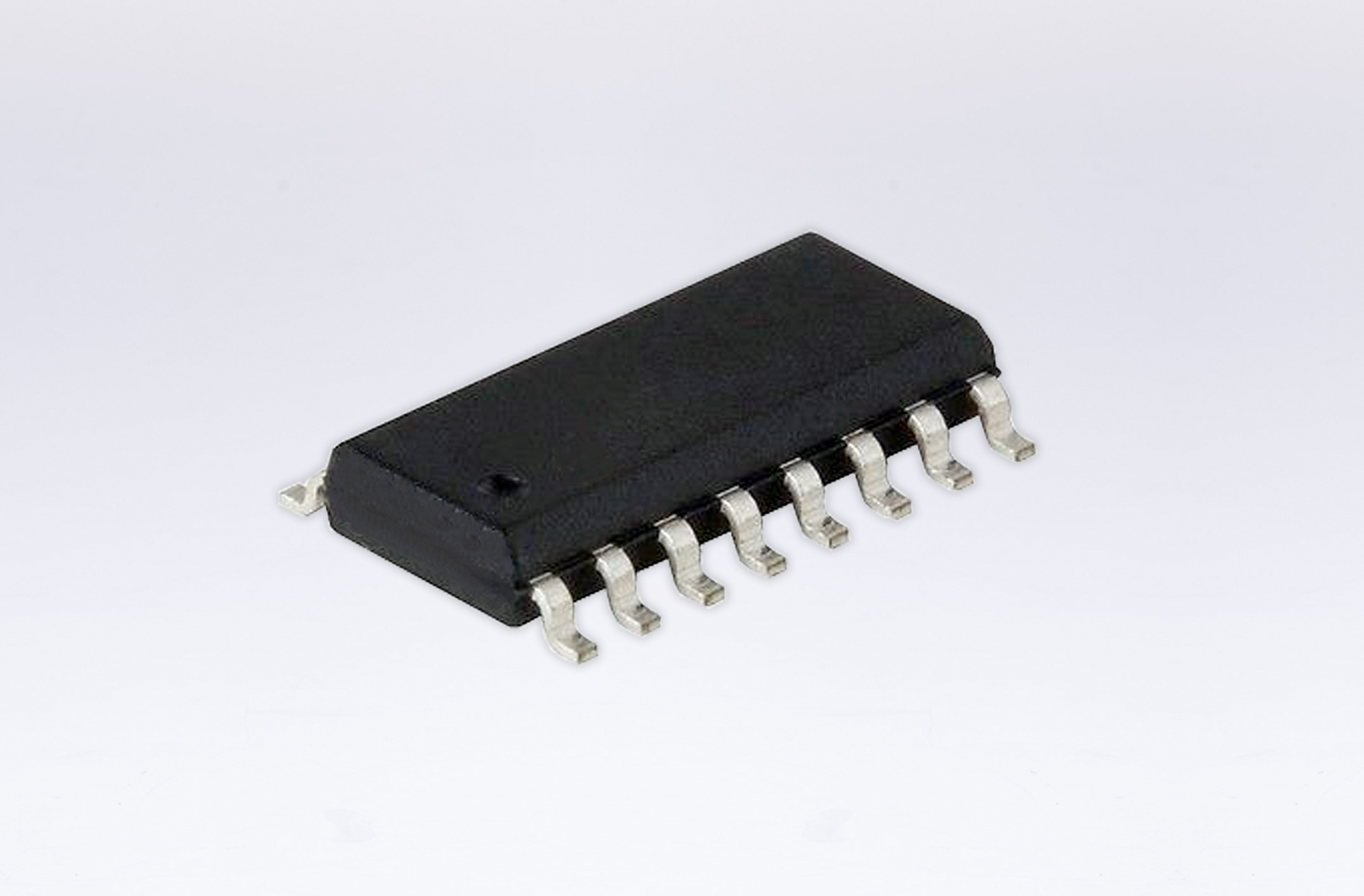

AS3109 comes in SOIC-16 case.
Manuals book
-
Data Sheet — Sept. 5, 2022
