Voltage controlled filter AS 3320

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

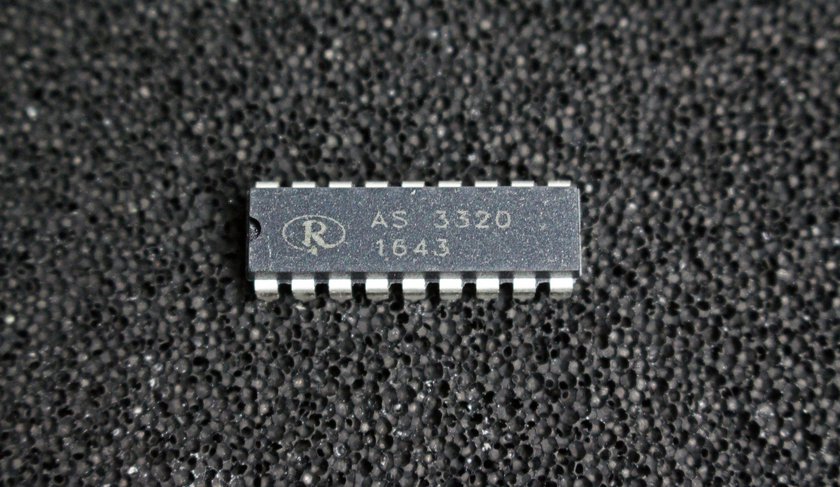

The AS3320 is a high performance voltage controlled four-pole filter with on-chip voltage controllable resonance IC.

Features

  • Voltage controllable frequency - 12 octave range
  • Voltage controllable resonance - from zero to
  • Oscillation
  • Accurate exponential frequency scale
  • Accurate linear resonance scale
  • Low control voltage feed-through -45dB typical
  • Filter configurable into LPF, HPF, all pass, etc.
  • Low noise: -86dB typical
  • Low distortion in passband - 0.1% typical
  • Low warm up drift
  • Configurable into low distortion voltage controlled
  • Sine wave oscillator
  • Improved CEM3320 pin-to-pin compatible

The four independent sections may be interconnected to provide a wide variety of filter responses, such as low pass, high pass, band pass and all pass. A single input exponentially controls the frequency over greater than a ten octave range with little control voltage feed-through. Another input controls the resonance in a modified linear manner from zero to low distortion oscillation. For those demanding applications, provision has been made to allow trimming for improved control voltage rejection. Each filter section features a variable gain cell which is fully temperature compensated, exhibits a better signal-to-noise ratio and generates its low distortion predominantly in the second harmonic. The device includes a minus two volt regulator to ensure low power dissipation and consequent low warm-up drift

NB! For 100+ pcs and/or in SOIC, QFN cases, please send an inquiry to Alfa RPAR: alfa@alfarzpp.lv

Datasheet is downloadable below.
