FUSION SYSTEM II
FUSION SYSTEM II
Available from June 5th
Erica Synths is one of the few manufacturers that use vacuum tubes in eurorack modules, and those, who are familiar with tube-based modules, know that tubes can push the sound to extremes or turn it deep, saturated and complete.

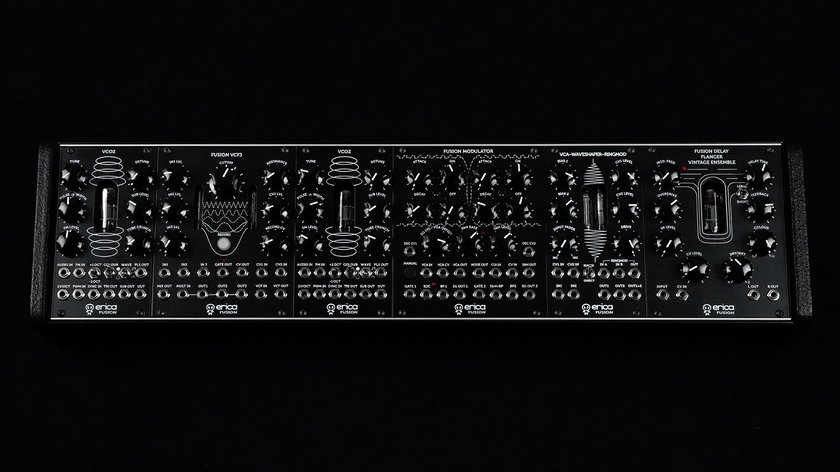

We have come up with three new Fusion series modules – Fusion VCF3, Fusion Modulator (already available) and Fusion VCA/Waveshaper/Ringmodulator (available from June 5th) – to create the Erica Synths Fusion System II – a modular synthesiser for sounds of unprecedented pressure, unconventional modulations and creativity-inspiring patching. A 104HP system has 63 patchpoints for extensive experiments in sound design, all analogue signal and CV path; it’s a system for those, who take sound design seriously.
Fusion System II includes:
- Two Fusion VCO2s – fully analogue sound source with three simultaneously available waveforms, transistor-based suboscillator and detune function – two BBD delay lines that make frequency shifter that is mixed back to the principal oscillator in order to emulate two detuned VCOs. Tube crunch – distinct tube overdrive - is added on the top of the mix.
- Fusion VCF3 – resonant 24dB/oct lowpass filter of unique design that combines vacuum tubes and vactrols, providing distinct, soft filtering. For more versatility a CV recorder, that records motion of the potentiometer, is incorporated in the module, so you can design advanced modulation patterns.
- Fusion Modulator - complex, all analogue CV source that consists of several blocks – two EMS Synthi functionality inspired looping envelope generators with simultaneous unipolar (0V-10V) and bipolar (-5V-+5V), VCA, Noise generator and Sample&Hold.
- Fusion VCA/Waveshaper/Ringmodulator – a modulation source based on two miniature pentodes that operates as VCA, waveshaper and ringmodulator. With two CVs applied simultaneously to different stages of the VCA, audio rate modulations, using ringmodulator as a waveshaper it becomes surprisingly versatile sound shaping module.
- Fusion Delay/Flanger/Vintage Ensemble – a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of the sound.
- 104HP One Row Skiff case (with or without a lid)
- 20 patch cables
RRP: 1950 (VAT excl.) - without case lid
RRP: 2030 (VAT excl.) - with case lid
