Fusion series

Fusion Delay/Flanger/Vintage Ensemble

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

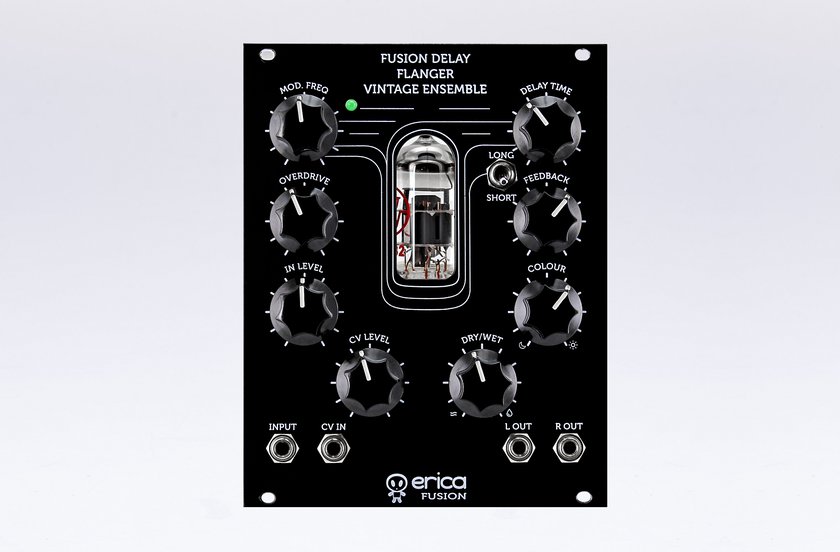

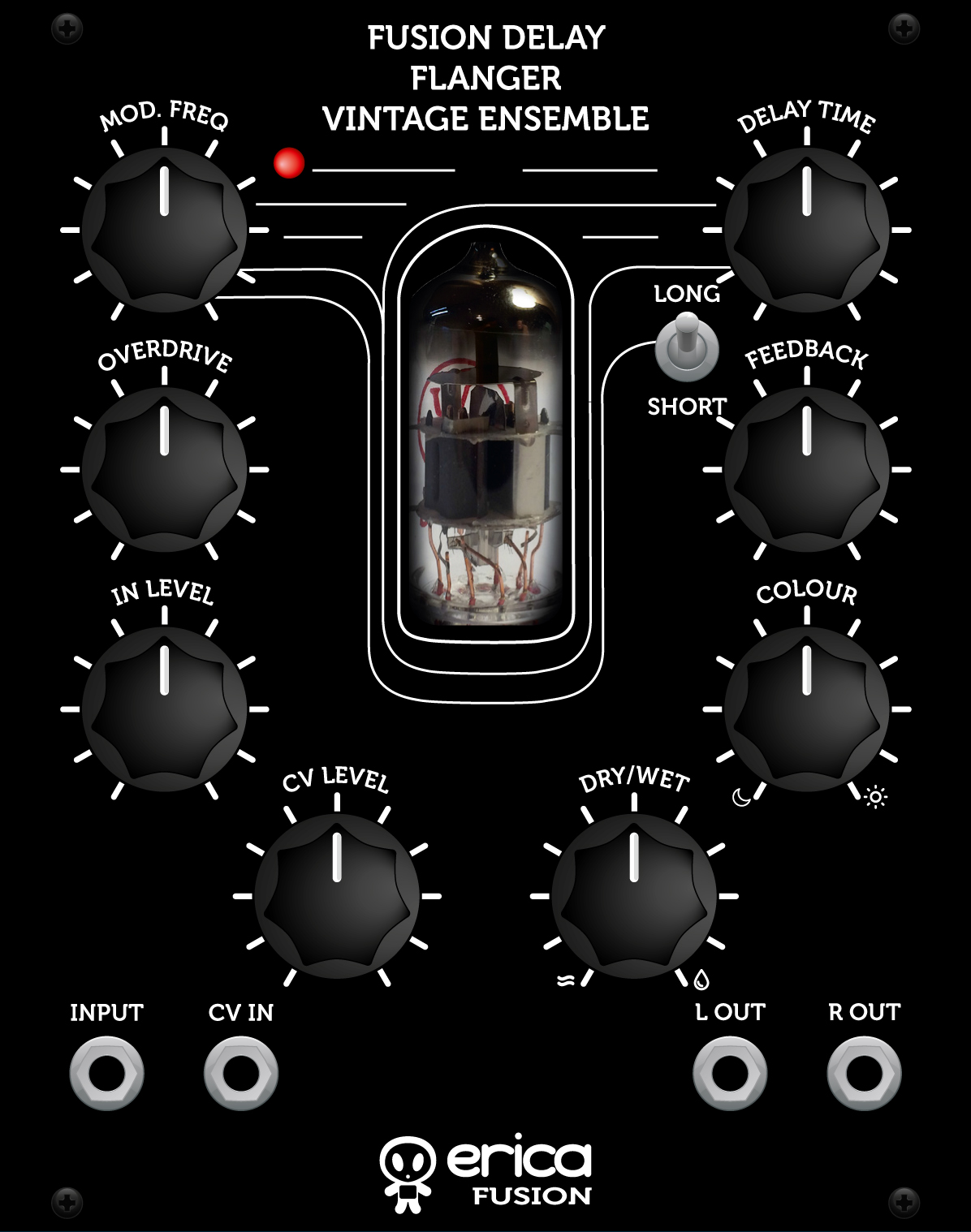

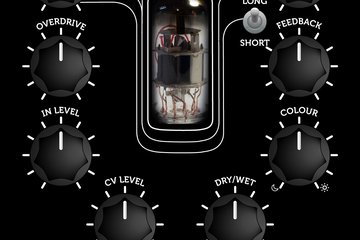

Erica Synths Fusion Delay/Flanger/Vintage Ensemble module is a distinct multifunctional analogue effects module that combines BBD chip based effects with an adjustable tube overdrive in the delay output and a feedback path for extra thickness of the sound.

For more flexibility lowpass filtering is fully adjustable from none to extreme. A special feature, not found in eurorack, is the Vintage Stereo Ensemble – an effect that’s common on vintage synthesizers to create a moving and thick spatial sound from a monaural tone generator, be it FM, DCO or any other kind. Such a spatial effect is achieved by mixing dry source with delayed and lowpass filtered out of phase signal.

All Fusion modules by default are configured to work with regular eurorack PSU.

Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection turn off the power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.

If you need a 6 to 6 pin  power cable included to your order (suitable for 6VAC PSU), please write that in the comment section during checkout process.

If you are looking to stretch sounds, add more mass to pads, let basses sound properly or make your drums and percussion to drill - this module will deliver great sound at all times. Surely those who are looking for clinically clean material won't be happy, the Fusion Delay is more likely to fall in the category of powerful, rude and unruly. The module does its job with bravery therefore considering the price we can only recommend! Verdict - 6 out of 6! - Beat Magazine

In aesthetics and sound, this is a great module, but will appeal more to synthesists looking for that true analogue sound, which is surely the whole point... Verdict - 9 out of 10! - Music Tech

Would I build a setup around valve modules? I was expecting to say no, but having spent time with the Fusion setup I’m surprised to say I actually would. It’s distinctive, it’s versatile, but more importantly it’s fun. Music has always been about philosophies and aesthetic choices; Erica understand that and offer something fantastically different with the Fusion series. These are not sterile, surgical tools. Far from it. And they’re all the better for that. - Attack Magazine

Technical specifications:

Audio input signal levelup to 20V ptp
Max delay time SHORT setting20ms
Max delay time LONG setting200ms
LFO range0.1Hz – 30Hz
Power supplybipolar +-12V , eurorack standard
Power consumption

Eurorack PSU configuration: 35mA@+12V, 170mA@-12V

(NB – start-up power consuption for few seconds is -250mA)

Module width20HP
Module depth35mm

Erica Fusion Delay/Flanger/Vintage Ensemble on Modulargrid
