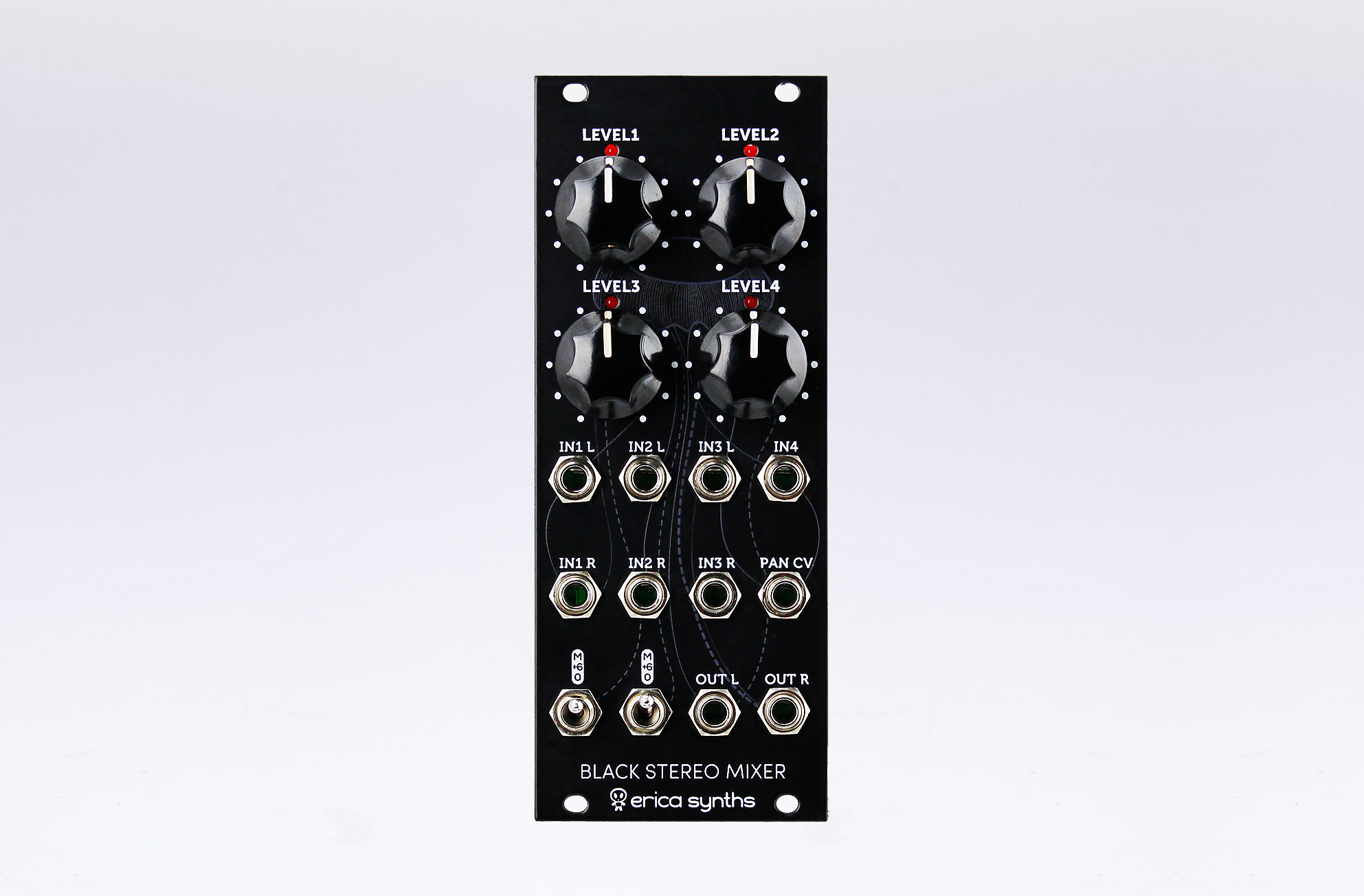

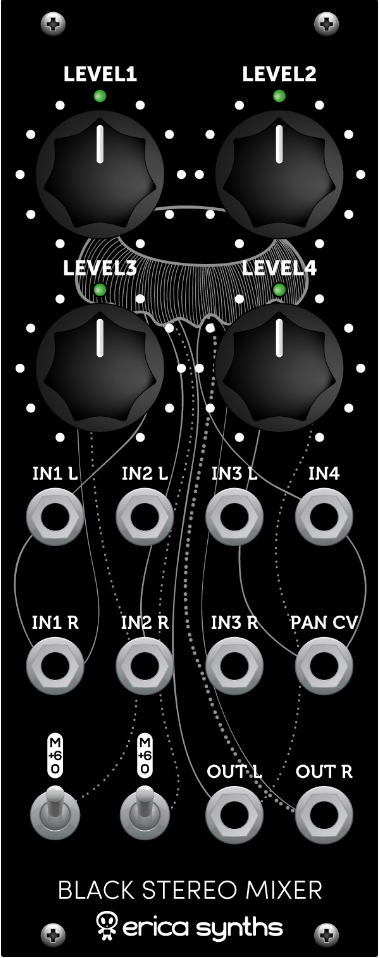

Black Stereo Mixer V2
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Features
- 3x stereo inputs with simultaneous volume adjustment on both channels
- 1 mono input with CV stereo panning
- 2 inputs with L and R channel merge feature
- Selectable +6dB boost for IN1 and IN2
- L and R outputs
- Signal level LEDs
In order to save rack space, we designed a compact mixer with a lot of cool, performance oriented features.
Check out also the Black Pre-fade Listen Expander that is a satellite module to Erica Synths Black Stereo Mixer!
Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.
Technical specifications:
Input signal | up to 20Vptp |
Pan CV | 20Vptp |
Mixer gain | 1 |
Power consumption | +25mA, -15mA |
Module width | 10HP |
Module depth | 25mm |
Erica Black Multimode VCF on Modulargrid
Manuals book
-
User manual — May 8, 2018
