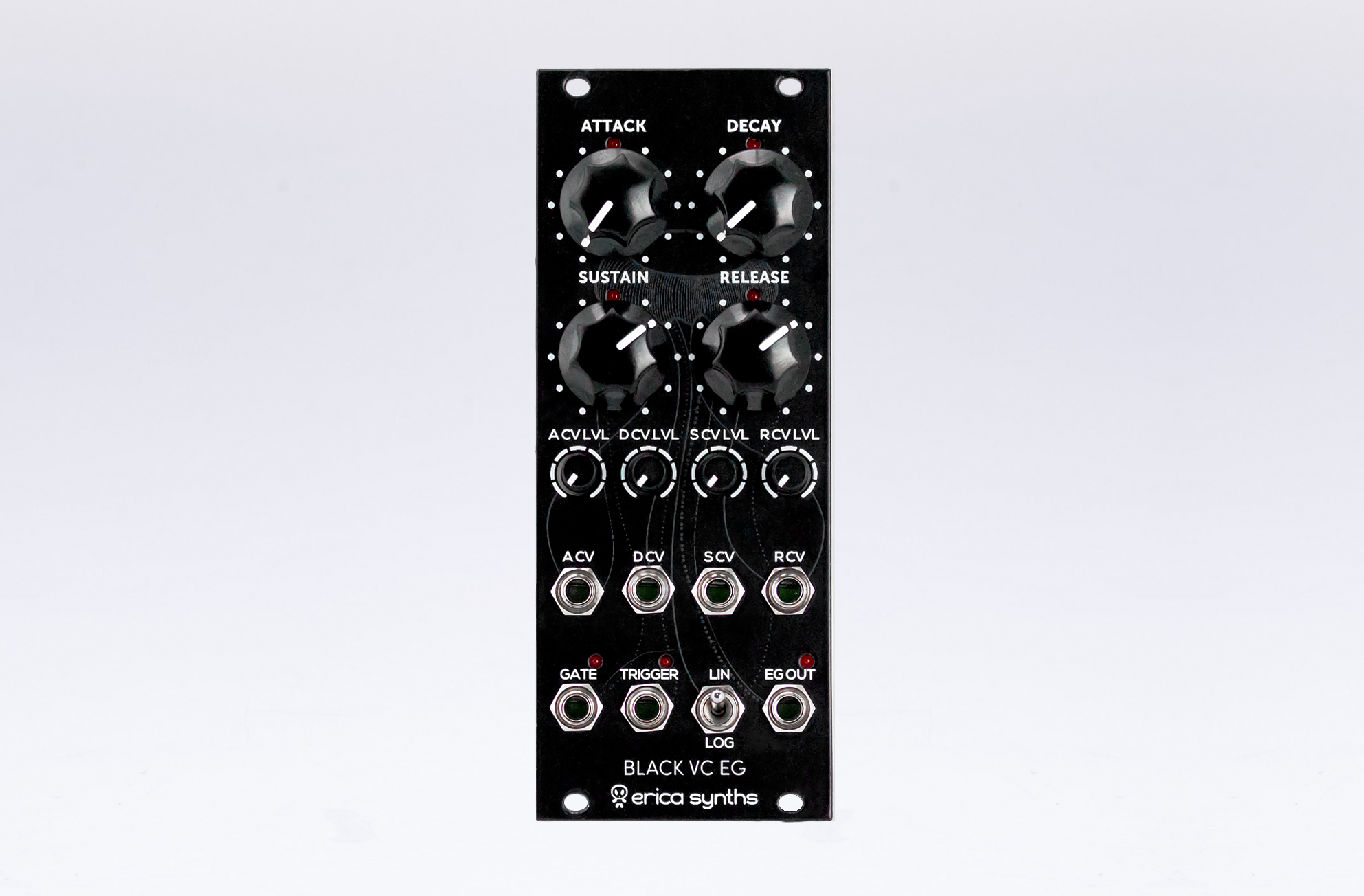

Erica Synths Black Voltage Controlled Envelope Generator gives you the ultimate control over envelopes in your modular synth.

Features

  • Retriggerable ADSR envelope generator
  • CV control over each stage
  • CV level attenuators
  • Looping function
  • Lin/log envelope selection shape
  • Skiff-friendly design

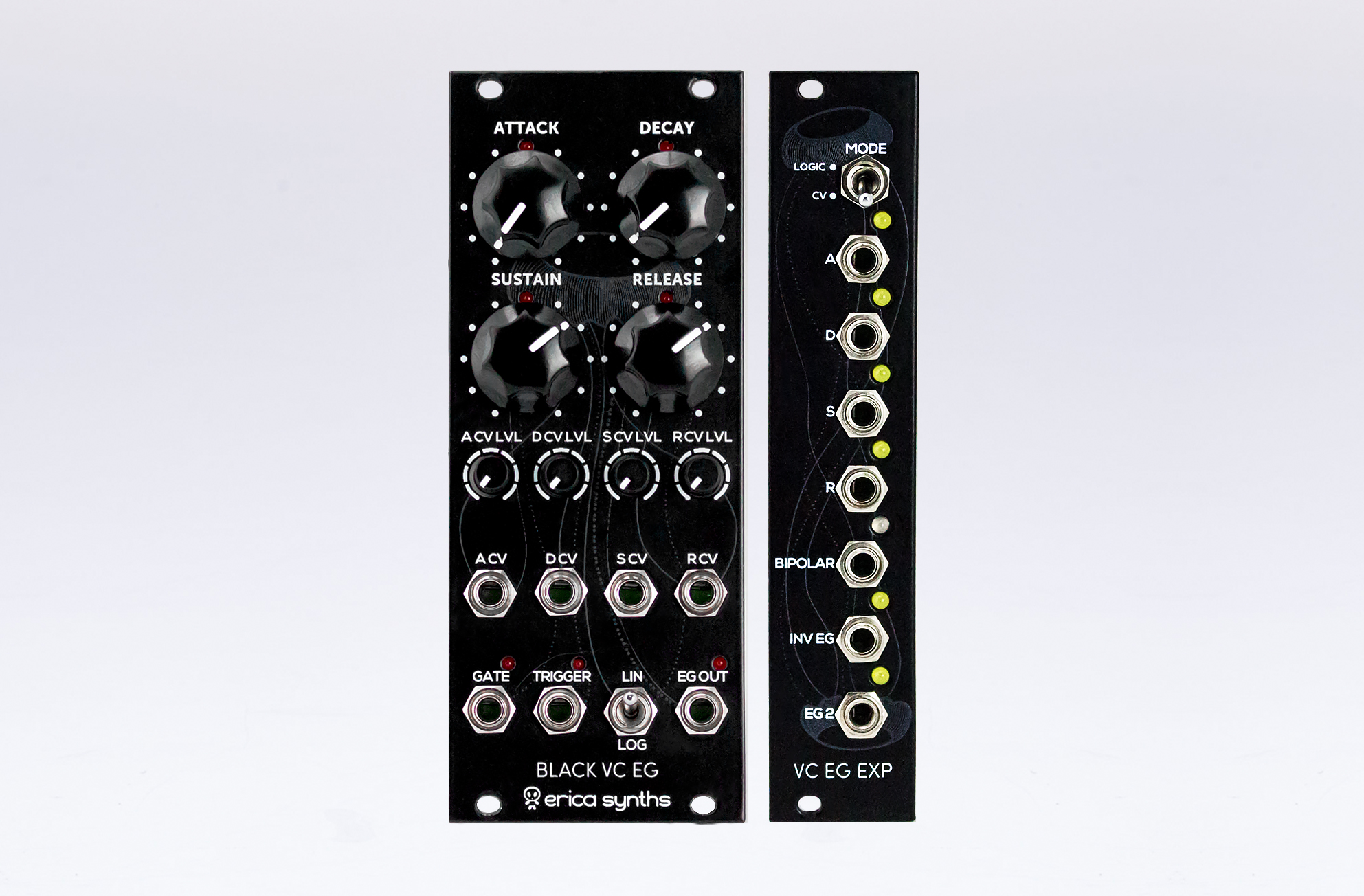

This module is looping lin/log ADSR envelope generator with CV control over each stage. Together with the Black VC EG Expander you will get a really advanced modulation source.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.


Technical specifications:


Envelope level0 - 10V
Attack time12”
Decay time12”
Release time12”
CV level (full sweep)-5V - +5V
Panel width10HP
Module depth30mm
Power consumption30mA@+12V,

15mA@-12V
Power consumption w. Expander.40mA@+12V,

20mA@-12V
