Fusion Mixer V3

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

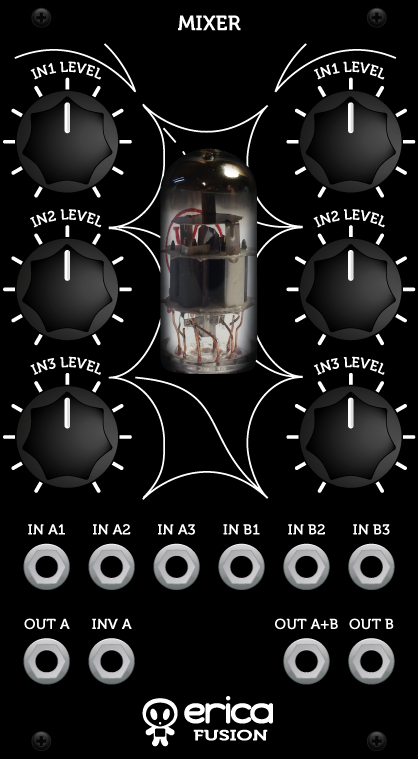

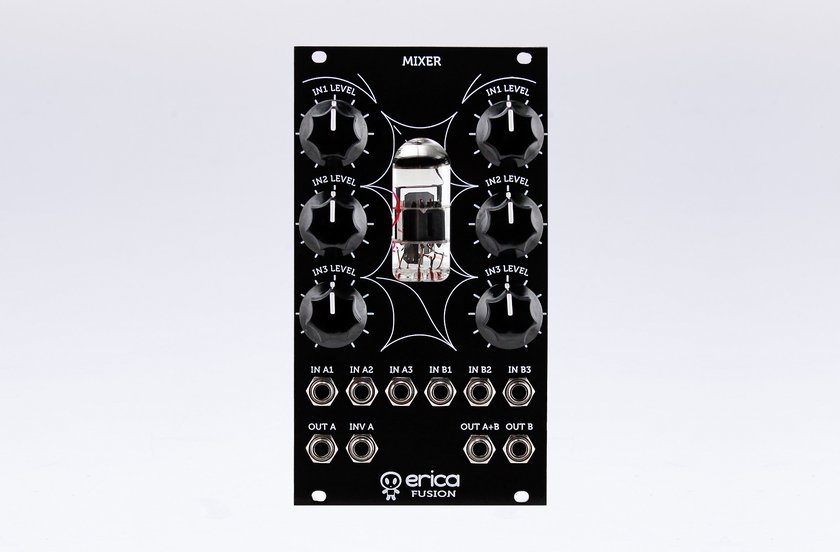

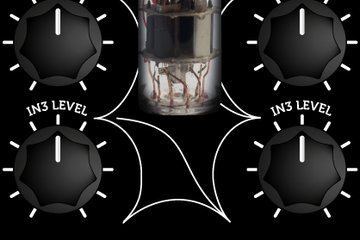

Erica Synths Fusion dual Mixer is designed to mix and overdrive audio signals on the vacuum tube.

Features

  • 6 audio inputs
  • Two independent 3-input mixer
  • Sum of all 6-inputs
  • Soft tube overdrive

Use the Fusion Mixer as two independent 3-input mixers (also for stereo signal mixing) or a 6-input mixer. Special feature of the Fusion Mixer – great tube overdrive effects when level knobs are set to 3 o’clock or above. When used with drum machines, it even emulates sidechain compressors. When used to mix signals from VCOs Fusion Mixer it works as waveshaper, especially, if pulse width modulated pulse signals is used in one of inputs.


All Fusion modules by default are configured to work with regular eurorack PSU.

Due to the fact that cold tube heaters have lower resistance, Fusion modules have significant power consumption peak at startup, when power consumption almost doubles for 1-2 seconds. This is not a problem with linear PSUs that have power inertia, but may cause switching PSU internal protection to turn off power supply. Please make sure your PSU has some headroom before installing multiple Fusion modules.

If you need a 6 to 6 pin  power cable included to your order (suitable for 6VAC PSU), please write that in the comment section during checkout process.

Would I build a setup around valve modules? I was expecting to say no, but having spent time with the Fusion setup I’m surprised to say I actually would. It’s distinctive, it’s versatile, but more importantly it’s fun. Music has always been about philosophies and aesthetic choices; Erica understand that and offer something fantastically different with the Fusion series. These are not sterile, surgical tools. Far from it. And they’re all the better for that. - Attack Magazine


Technical specifications:


Input signal levelup to 20V ptp
Output signal level10V ptp
Mixer GAIN1
Power supplybipolar +-12V , eurorack standard
Power consumptionEurorack PSU configuration: 160mA@+12V, 10mA@-12V
Module width14HP
Module depth25mm

Please, refer to the user manual below for all possible power supply configurations!
