Pico LFO/S&H

special offer warning
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

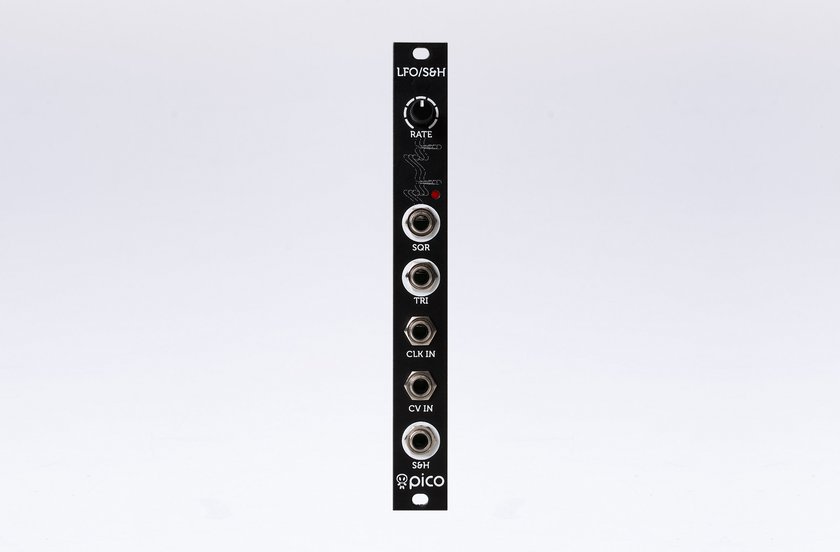

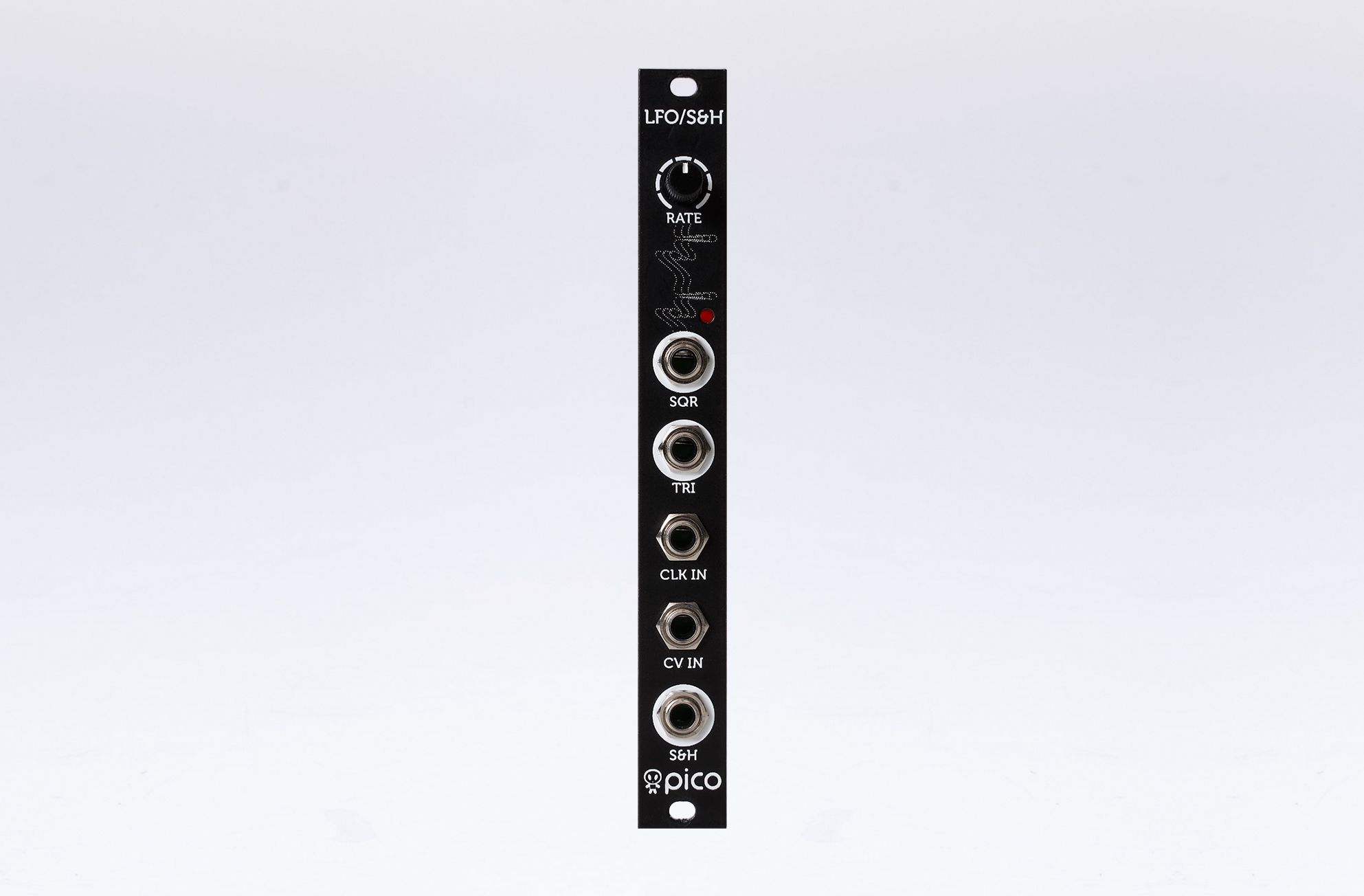

Pico LFO/S&H is full analogue modulations source – LFO and Sample and Hold – to provide some controlled randomness to your modular setup.

Features

  • Full analogue circuit
  • LFO with triangle and square wave outputs
  • Highly stable S&H circuit based on AS1100CK2 IC
  • Input and output protection against overvoltage
  • Protection against reverse PSU connection

Technical specification:

Output amplitude-5V - +5V
LFO frequency range0,4Hz – 20Hz
Power consumption+13mA, -10mA
Module width3HP
Module depth35mm
