EDU DIY Hi-Hat

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

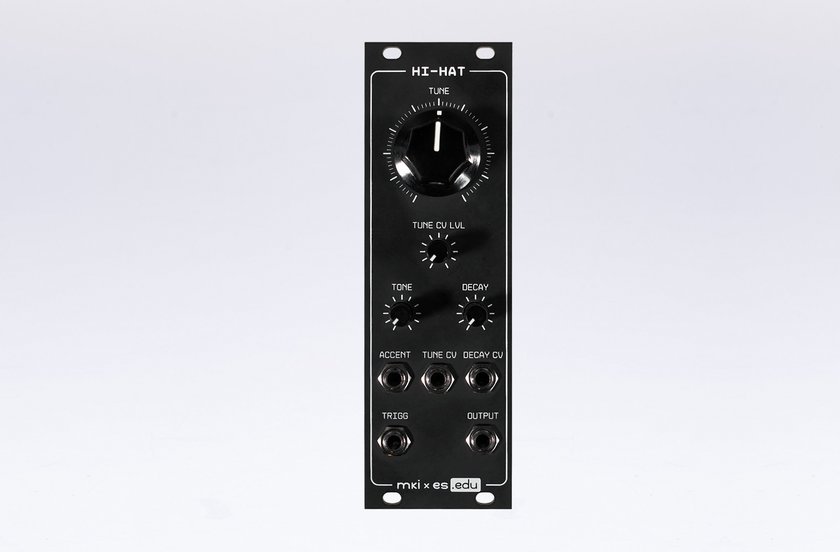

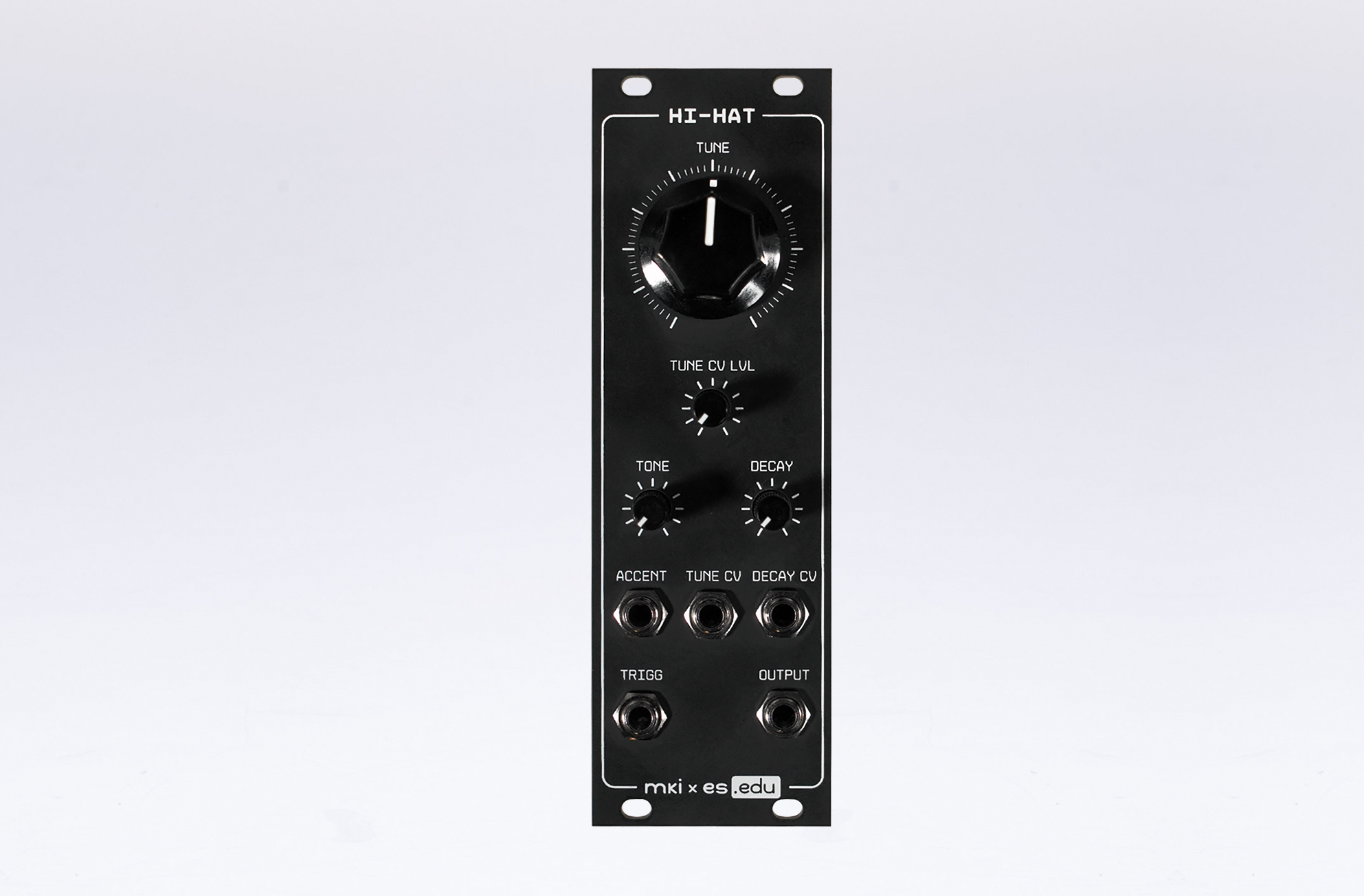

Synthesized, analog Hi-Hats are pretty fascinating. That’s because emulating any kind of cymbal using an analog circuit is tough since the sound a real cymbal produces is not quite pure noise, but also not really harmonic. Still, a couple of classic drum machines like the Roland TR-606 and TR-808 took their best shot at it, with quite strange-sounding results that have since become iconic in electronic music. Inspired by this, we decided to follow suit and continue our percussion-focused second season of educational DIY kits with the mki x es.edu DIY Hi-Hats.

Features

  • TR-808 inspired circuit
  • Manual Tune, Decay and Tone controls
  • CV controlled Tune and Decay
  • Accent input

Technical specifications:

CV span (full range)-5V - +5V
Accent>+2.5V
Module width8HP
Module depth30mm
Power consumption7mA@+12V, 7mA@-12V

We – Erica Synths and Moritz Klein – have developed a series of educational DIY kits under the brand name mki x es.EDU with one specific goal in mind: to teach people with little-to-no prior experience how to design analog synthesizer circuits from scratch. What you’ll find in the box is not simply meant to be soldered together and then disappear in your rack. Instead, we want to take you through the circuit design process step by step, explaining every choice we’ve made and how it impacts the finished module.

NB! All kits in these series are simple and come with extensive user manuals that can be downloaded separately, therefore we will not provide customer support in case your DIY build fails to function or similar.
