Black Hole DSP

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

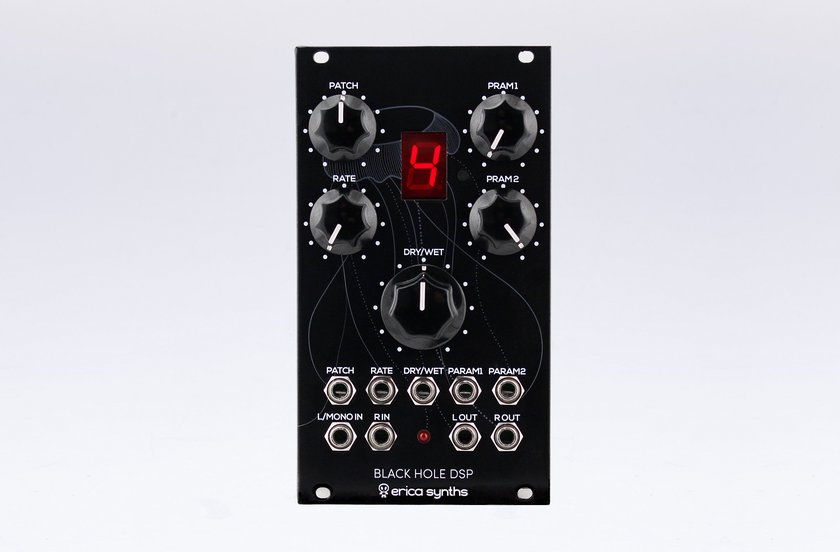

Erica Synths Black Hole DSP by default has 16 effects, each with 4 adjustable and CV controllable parameters and CV controlled effect select.


  • Spin FV-1 chip

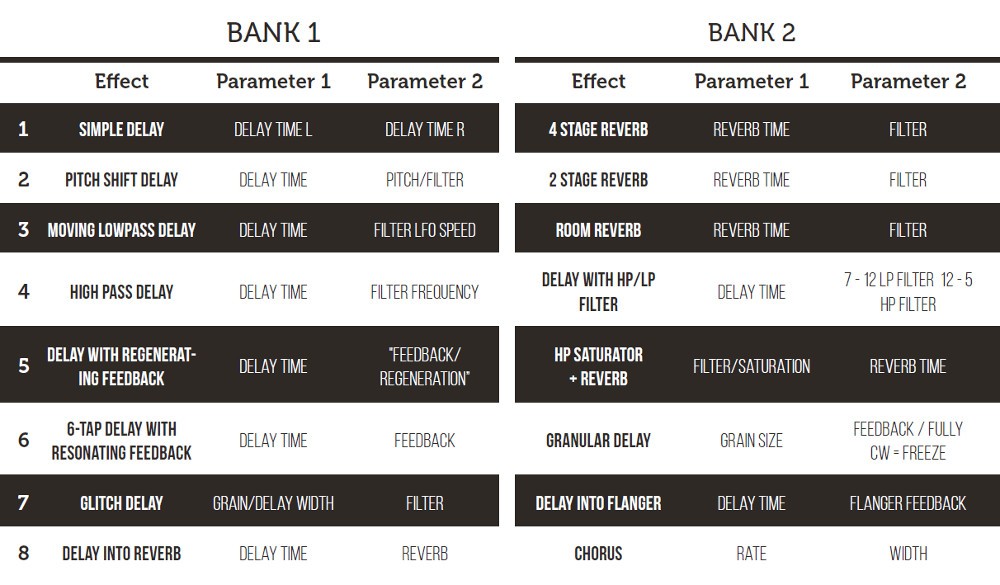

  • 16 unique custom effects
  • Stereo INs and OUTs
  • 3 manually and CV controllable parameters
  • CV controlled effect select
  • Manually and CV controllable clock rate reduction for noisy bitcrush
  • 7 segment display for effect select indication
  • Audio clipping LED

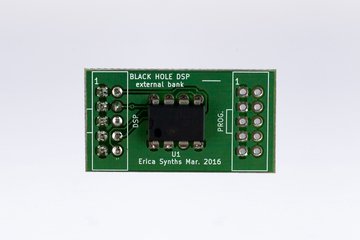

  • Exchangeable external effect boards

This module tops the Erica Black series with mind blowing sound effects that are designed in a close co-operation of Erica Synths team rider KODEK and Spin CAD software creator Gary Worsham. Furthermore, external effect boards (sold seperately) containing sets of effects can adapt Erica Black Hole DSP to your way of creating music. Use the module with Erica Black CV Expander for more delicate CV control over parameters.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

NB! To install the FX expansion ROM - before turning on the module, the patch knob has to be on its MAX level.

Technical specifications:

Audio input level

up to 20V ptp

CV input level

-10V - +10V

Signal attenuation


Panel width


Module depth


Power supply

112mA@+12V, 32mA@-12V

Black Hole DSP on Modulargrid

Manuals book
