Cowbell
EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty

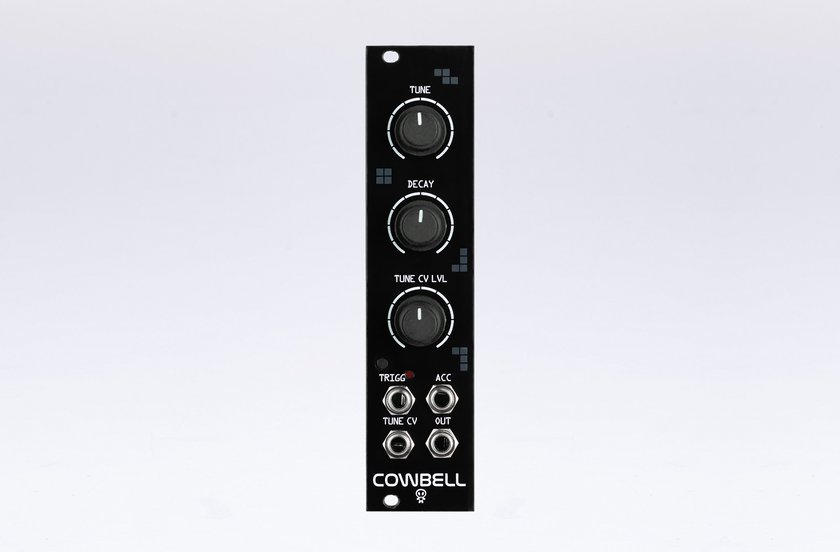

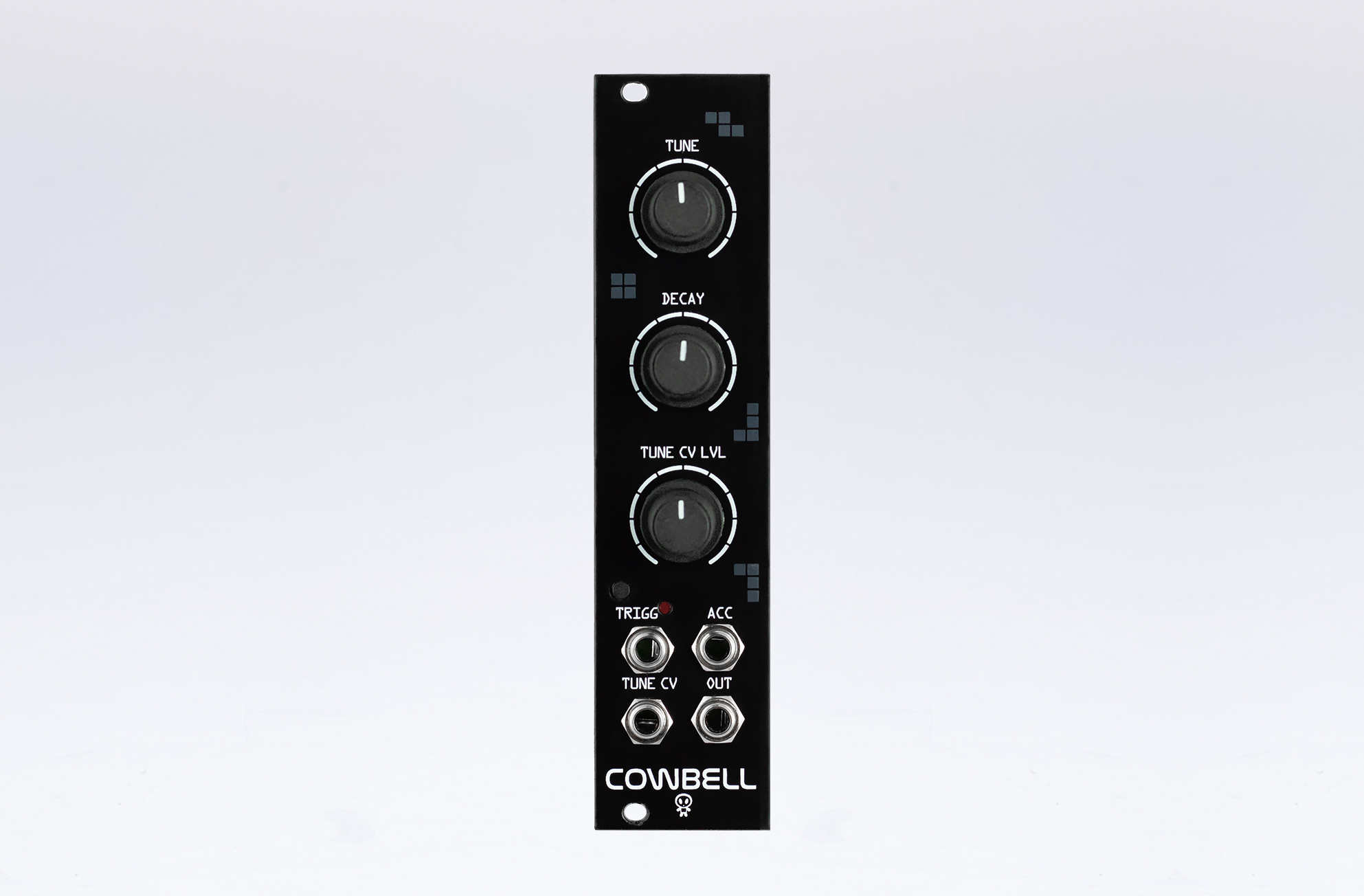

Erica Synths Cowbell module is an extended, modular version of Yocto (808) cowbell. For more sonic versatility we have added Tune and Decay controls, as well as Tune CV with an attenuator for nice vibratos.
Features
- Manually and CV controlled tune
- Decay control
- Manual trigger
- Accent input
- Module width - 6HP
- Module depth – 35mm
The module is developed in collaboration with the French company e-licktronic.
Technical specifications:
Decay range | 120ms - 1100ms |
Audio output level | -5...+5V |
CV level (full span) | -5V - +5V |
Trigger level | 5V |
Trigger time | 1ms |
Accent CV level | 10V |
Power consumption | 14mA@+12V 10mA@-12V |
Module width | 6 HP |
Module depth | 40 mm |
Manuals book
-
User Manual — Aug. 2, 2019None
