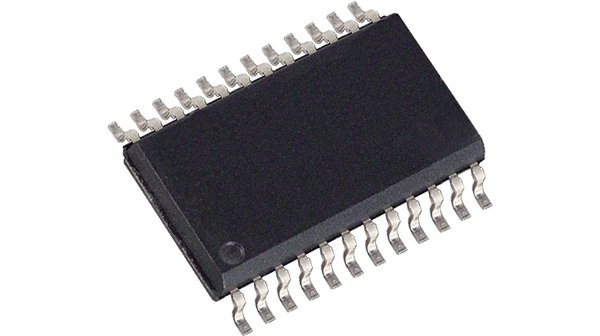

AS 3394E Synthesizer voice in SOIC-24 case 1 pc
- local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
- account_balance_wallet Pay securely with Credit Card or PayPal
- beach_access 24 month warranty
Included on-chip are:
- temperature compensated, wide range, voltage controlled oscillator (suboscillator, triangle, sawtooth, and pulse waveforms);
- voltage controlled mixer for adjusting the balance between the internally generated VCO waveforms and any external signal;
- dedicated four-pole low-pass voltage controlled filter with voltage controlled resonance;
- modulation amount VCA for modulating the filter frequency by the triangle waveform output of the VCO;
- final VCA for allowing the output to be enveloped.
Envelope control for both the VCF and final VCA may be provided by either a hardware envelope generator such as the AS3310
or through software.
For larger quantities, please, contact Alfa RPAR: firstname.lastname@example.org
Data Sheet — May 19, 2022None
