ICs

Quad Voltage Controlled Amplifier AS 2164

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty
AS2164 contains four independent voltage controlled amplifiers (VCAs).

Features

Each VCA offers high performance (100 dB dynamic range, 0.02% THD)  current input and output for maximum design flexibility, and a ground referenced –33 mV/dB control port.
All channels are closely matched to within 0,07 dB at unity gain, and 0,24 dB at 40 dB of attenuation. A 120 dB gain range is possible.
A single resistor tailors operation between full Class A and AB modes.
AS2164 is internally protected in situations where negative supply is turned OFF.


For larger quantities, please, contact Alfa RPAR: alfa@alfarzpp.lv

Downloads cloud_download

You may also like

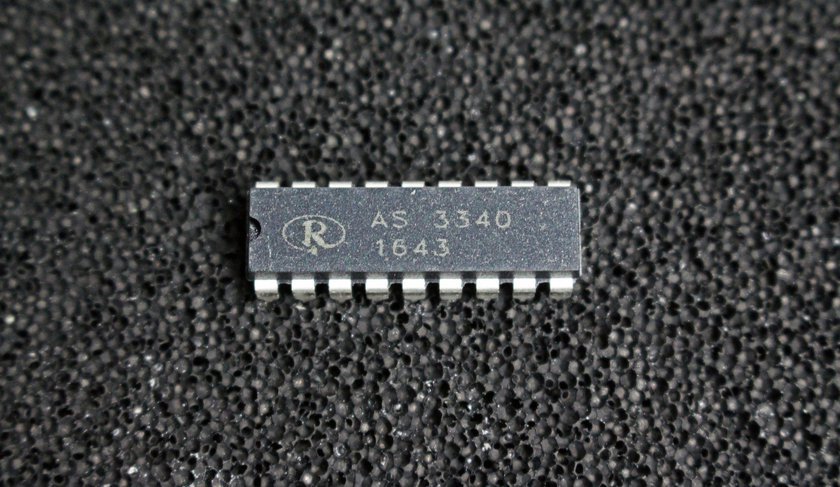

Voltage controlled oscillator AS 3340
