DIY BBD Delay/Flanger

EU customers: + VAT for customers in the EU without EU VAT registration number + shipping
Outside EU: + local taxation (VAT / trade tax / import duties) is applicable in the country of delivery + shipping
  • local_shipping Worldwide delivery with UPS/Fedex/Latvian Post
  • account_balance_wallet Pay securely with Credit Card or PayPal
  • beach_access 24 month warranty

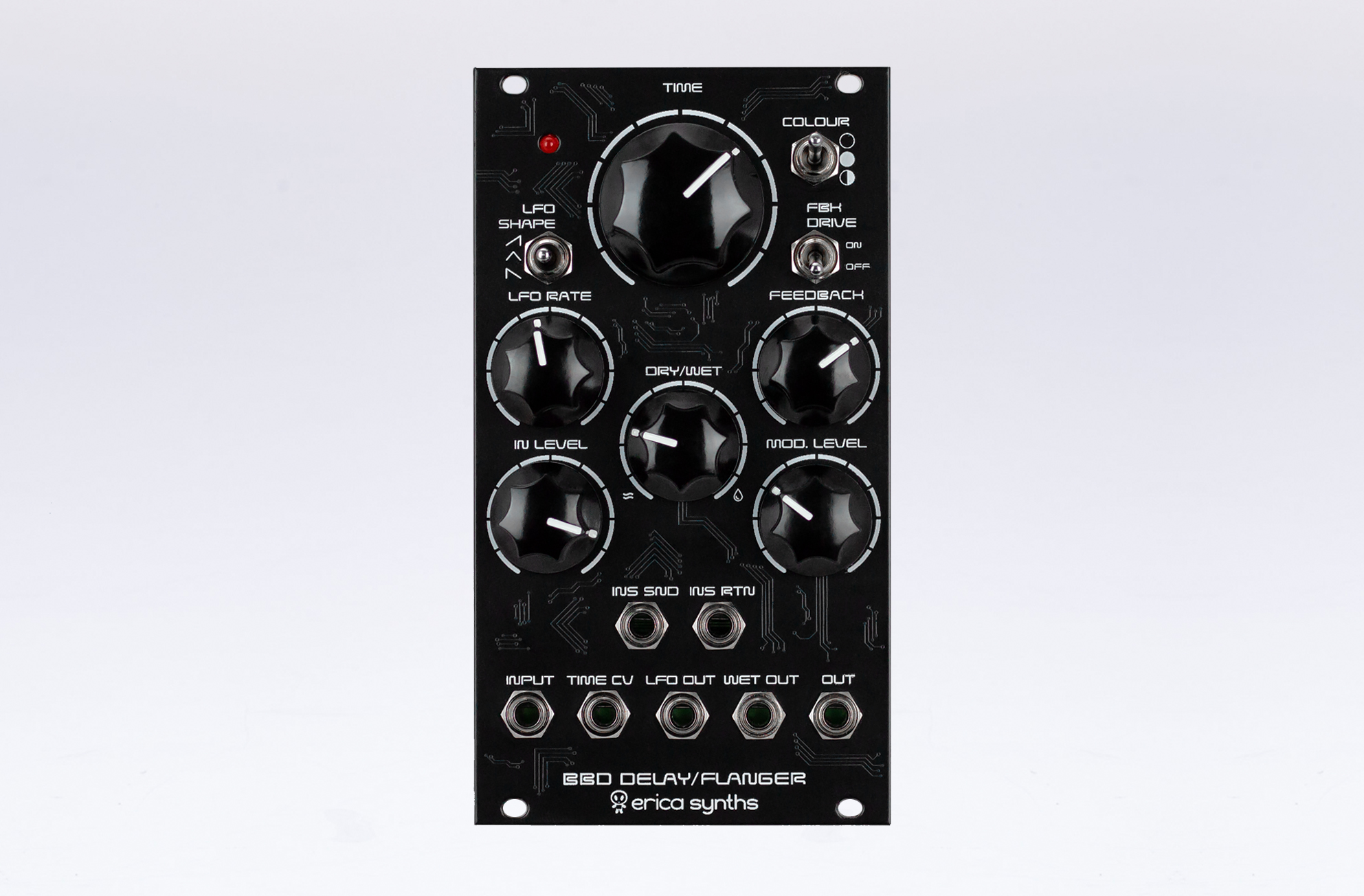

Erica Synths DIY BBD Delay/Flanger is one of the few BBD (bucket brigade delay) chip based DIY modules. The module is designed to provide variety of effects from flanger to delays with adjustable flavours and plenty of modulation possibilities.

Features

  • 4092 stage BBD
  • Up to 300ms delay time
  • Delay time CV input with an attenuator
  • Feedback Send-Return circuit for external effects
  • Built in LFO with dedicated output
  • Two customizable feedback overdrive flavours
  • LP filter on the output with selectable cutoff
  • Dedicated Wet output


The module has built in LFO with selectable shape and dedicated LFO output, delay time CV input with an attenuator, selectable feedback overdrive and feedback Send-Return connectors, so you can apply external effects on feedback signal. Maximums feedback settings put the module in self oscillation, so it can be used as an experimental sound source, as well.

Technical specifications:

Max delay time300 ms
Audio output amplitude10V ptp
CV amplitude (full span)-5 - +5V
Panel width14 HP
Module depth45 mm
Power consumption30mA @+12V; 20mA @-12V



Effective January 1 2021 Erica Synths will not provide technical support for DIY projects. As all Erica Synths DIY Kits are now sold out, we offer them as opensource build projects on Github. If you have trouble with building any of Erica Synths DIY projects, please, for advice & support refer to forums & DIY community. All the rare components are available at largest DIY retailers or here.
